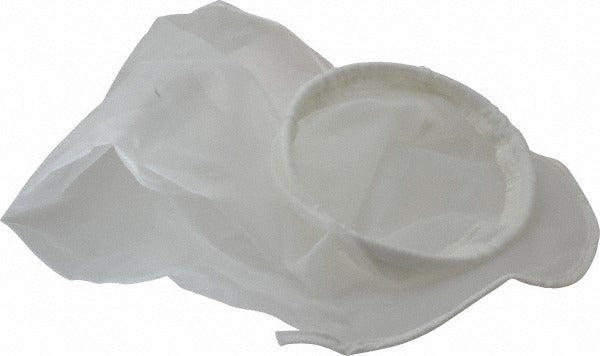

Parker G2PEMU250 High Efficiency Bag Filter 250 Micron

Product Description

The PARKER G2PEMU250 is a Size 2 high-efficiency polyester bag filter rated at 250 microns and designed for liquid filtration applications requiring flow rates up to 80 GPM. Measuring 7 inches in diameter and 31.25 inches in length, this filter fits standard Size 2 bag filter housings. The polyester construction offers broad chemical compatibility and maintains structural integrity up to 275 degrees F, making it suitable for demanding industrial and process fluid systems. Licensed technicians and industrial maintenance professionals install this filter as part of a multi-bag or single-bag housing assembly to remove particulate from liquid process streams.

The G2PEMU250 is suited for industrial liquid filtration applications where moderate particulate removal at high flow rates is required. Typical installations include process water systems, cooling water loops, paint and coating lines, and chemical processing circuits that operate within the 80 GPM and 275 degrees F rated limits. The 250-micron rating targets coarser particulate, making it appropriate for prefiltration stages or applications where fine filtration is not required. This filter is installed inside a compatible Size 2 bag filter housing.

Key Features

• 250-micron rating removes coarse particulate from liquid process streams
• High-efficiency bag construction for improved particle capture compared to standard bags
• Polyester body material provides broad chemical resistance
• Size 2 form factor fits widely available standard bag filter housings
• Rated up to 80 GPM maximum flow rate
• Maximum working temperature of 275 degrees F supports hot process fluid applications

Compatibility

Designed as an OEM-style replacement or direct-fit filter for standard Size 2 bag filter housings rated for 7-inch diameter, 32-inch nominal length filter bags.

Installation Notes

Installation should be performed by qualified maintenance or filtration system technicians. Isolate and depressurize the filter housing completely before opening and replacing the bag. Inspect the housing basket, O-ring, and lid seal at each service interval and replace worn components to maintain system integrity. Follow the housing manufacturer's torque and closure instructions when reinstalling the housing lid after bag replacement.
