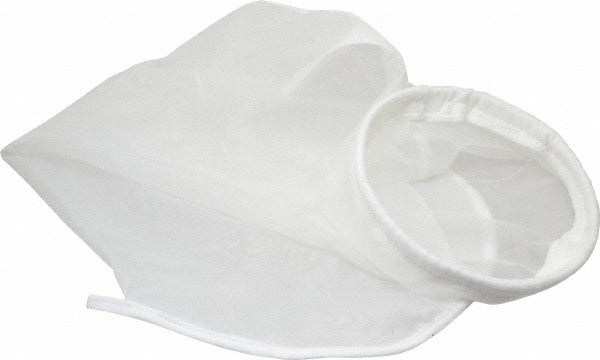

Parker G2PEMU150 Bag Filter 150 Micron Size 2 80 Gpm

Product Description

The PARKER G2PEMU150 is a Size 2 high efficiency polyester bag filter rated at 150 microns with a maximum flow rate of 80 GPM. It measures 7 inches in diameter and 31.25 inches in length, making it a standard Size 2 form factor for industrial and commercial filtration housings. This filter captures particulate at the 150-micron threshold, protecting downstream equipment from debris and sediment. It is suited for liquid filtration systems in HVAC, industrial process, and water treatment applications. Licensed mechanical contractors and facility maintenance professionals are the typical installers of this filter element.

The G2PEMU150 fits into Size 2 bag filter housings commonly found in commercial mechanical rooms, light industrial process lines, and water treatment skids. With a maximum working temperature of 275 degrees F, it handles hot process fluids as well as ambient-temperature water systems. Its high efficiency bag construction is designed to deliver lower pressure drop and extended service life compared to standard bag filter media. It ships individually and is stocked as a single-piece replacement element.

Key Features

• 150-micron filtration rating for particulate removal in liquid systems
• Size 2 bag format — 7 inches in diameter, 31.25 inches in length
• Maximum flow rate of 80 GPM for high-throughput applications
• Rated to 275 degrees F maximum working temperature
• High efficiency polyester construction for extended service intervals
• Single-piece replacement element — no modification required

Compatibility

Designed as an OEM-style replacement element for Size 2 bag filter housings used in commercial and light industrial liquid filtration systems.

Installation Notes

Installation is typically performed by licensed mechanical contractors or trained maintenance technicians. Always depressurize and isolate the filter housing before opening and replacing the bag element. Confirm the housing inlet and outlet valves are closed and residual pressure is relieved before servicing. Dispose of spent filter media in accordance with local regulations, particularly when filtering process chemicals or treated water.
