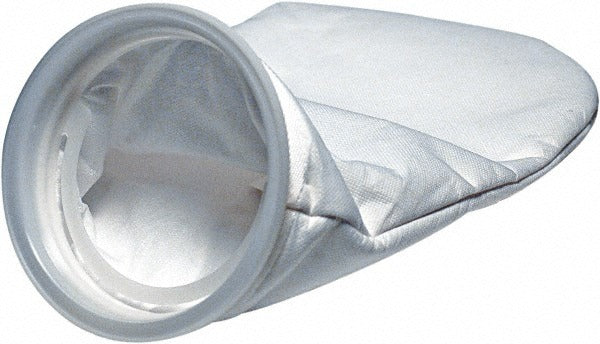

Parker G1XLH10-H High Efficiency Bag Filter 10 Micron

Product Description

The PARKER G1XLH10-H is a Size 1 high-efficiency bag filter rated at 10 microns and designed for liquid filtration applications requiring reliable particulate removal at flow rates up to 44 GPM. The filter body is constructed from polypropylene, making it resistant to a wide range of process fluids and compatible with systems operating at temperatures up to 200 degrees F. Measuring 7 inches in diameter and 17.25 inches in length, this bag filter fits standard Size 1 filter housings. It is suited for industrial, commercial, and process filtration systems where consistent micron-rated performance is required.

This filter is used in liquid process lines where particulate contamination must be controlled to protect downstream equipment such as pumps, valves, heat exchangers, and instrumentation. Typical applications include water treatment, chemical processing, and general industrial fluid systems. The 44 GPM maximum flow rate makes it appropriate for mid-volume process lines running through standard Size 1 filter housings. Installation is performed by maintenance technicians, industrial mechanics, or plumbing professionals as part of routine filter change-out or system commissioning.

Key Features

• 10-micron filtration rating for fine particulate removal in liquid service
• High-efficiency bag construction for improved capture compared to standard filter bags
• Maximum flow rate of 44 GPM suitable for mid-volume process applications
• Polypropylene construction compatible with a broad range of process fluids
• Rated for continuous use up to 200 degrees F
• Size 1 form factor fits standard Size 1 filter housings

Compatibility

Designed as an OEM-style replacement or service bag for standard Size 1 liquid filter housings that accept 7-inch diameter, 17.25-inch long filter bags.

Installation Notes

Filter bag replacement should be performed by a qualified technician following proper lockout/tagout procedures. Isolate and depressurize the filter housing completely before opening. Ensure the replacement bag seats fully and evenly in the housing basket to prevent bypass. Confirm that the housing cover is properly torqued and sealed before returning the system to service.
