Parker G1PEMU250 Bag Filter 250 Micron Size 1 44 Gpm

Product Description

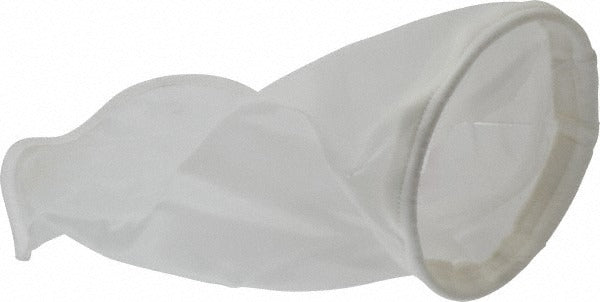

The PARKER G1PEMU250 is a Size 1 high-efficiency bag filter rated at 250 microns, designed for industrial and commercial liquid filtration applications. Constructed from polyester, this bag filter handles a maximum flow rate of 44 GPM and can operate at temperatures up to 275 degrees F. At 7 inches in diameter and 17.25 inches in length, it fits standard Size 1 filter housings and is installed by maintenance technicians, pipefitters, and fluid-handling system specialists. The polyester construction provides resistance to a broad range of process fluids and contributes to its high-efficiency filtration performance.

This filter is suited for use in industrial process filtration, water treatment, paint and coatings lines, chemical processing, and general liquid filtration systems where particle control at 250 microns is required. It is appropriate for both light commercial and heavier industrial settings where a Size 1 bag filter housing is already installed. Typical applications involve protecting downstream equipment such as pumps, nozzles, and heat exchangers from particulate contamination.

Key Features

• 250-micron filtration rating for reliable coarse-to-medium particulate removal
• Maximum flow rate of 44 GPM supports high-throughput liquid filtration systems
• Polyester construction offers broad chemical compatibility and durability
• Rated to 275 degrees F maximum working temperature
• Size 1 format fits standard Size 1 bag filter housings
• Lightweight at 0.3 pounds for easy handling and quick changeout

Compatibility

Designed as a direct-fit replacement for Size 1 bag filter housings requiring a 250-micron polyester high-efficiency bag filter element with a 7-inch diameter and 17.25-inch length.

Installation Notes

Bag filter replacement is typically performed by pipefitters or maintenance technicians. Before servicing, depressurize the filter housing completely and isolate it using the appropriate inlet and outlet shutoff valves. Inspect the housing seal and basket for wear or debris before seating the new bag. Follow applicable facility lockout/tagout procedures prior to any filter changeout.
