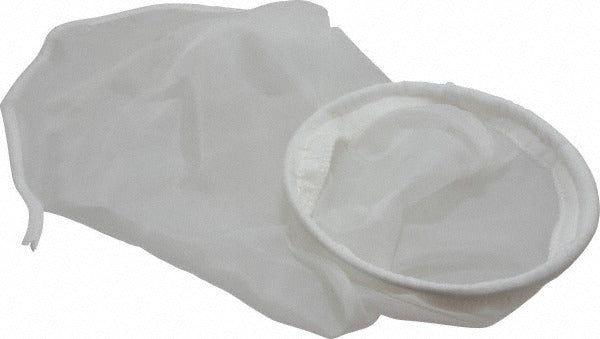

Parker G1PEMU150 Bag Filter 150 Micron Size 1 44 Gpm

Product Description

The PARKER G1PEMU150 is a Size 1 high-efficiency polyester bag filter rated at 150 microns with a maximum flow rate of 44 GPM. The filter body measures 7 inches in diameter and 17.25 inches in length, fitting standard Size 1 filter housings used across industrial, commercial, and process filtration systems. It handles fluid temperatures up to 275 degrees F, making it suitable for demanding liquid filtration applications. HVAC mechanical contractors, industrial maintenance technicians, and process engineers install this filter to remove particulate from liquid systems where consistent micron retention and high throughput are required.

The G1PEMU150 is designed for use in Size 1 bag filter housings commonly found in cooling water circuits, process liquid lines, and general industrial liquid filtration systems. Its 150-micron rating targets medium-particle removal, and the 44 GPM maximum flow capacity supports moderate to high-volume system demands. The polyester construction provides chemical resistance suitable for a range of water-based and light chemical process fluids. This filter is typically installed in-line on supply or return piping where particulate control is required before downstream equipment.

Key Features

• 150-micron filtration rating for medium-particle removal from liquid streams
• 44 GPM maximum flow rate supports moderate to high-volume applications
• Polyester bag material offers chemical resistance for water-based and compatible process fluids
• Rated for fluid temperatures up to 275 degrees F
• Size 1 form factor fits standard Size 1 bag filter housings
• Lightweight at 0.3 pounds for easy handling and changeout

Compatibility

Designed as an OEM-style replacement bag filter for standard Size 1 bag filter housings used in industrial and commercial liquid filtration applications.

Installation Notes

Installation is performed by mechanical contractors or maintenance technicians. Always depressurize and isolate the filter housing from the system before opening and replacing the bag. Verify that the housing inlet and outlet valves are fully closed and residual pressure is relieved before servicing. Confirm the replacement bag micron rating and size designation match the housing specification before installing.
