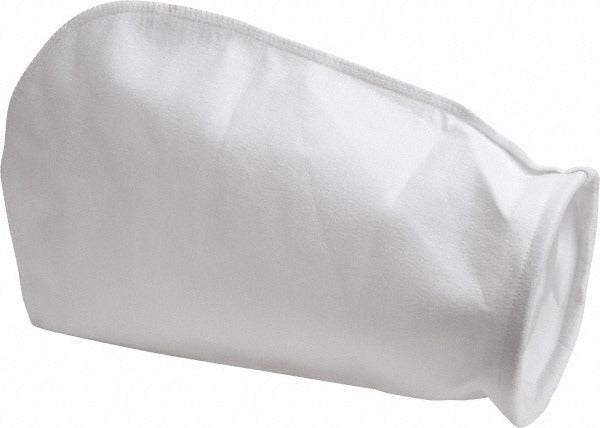

Parker G1PE5 High Flow Bag Filter 5 Micron Size 1

Product Description

The PARKER G1PE5 is a Size 1 High Flow bag filter rated at 5 microns, designed for liquid filtration applications where high flow rates and effective particulate removal are required. Constructed with a polyester filter medium, it measures 7 inches in diameter and 16.5 inches in length. This filter handles operating temperatures up to 275 degrees F, making it suitable for demanding industrial and process fluid systems. Licensed industrial maintenance technicians and filtration system specialists are the primary installers of this component.

The G1PE5 fits Size 1 High Flow bag filter housings and is used in commercial and industrial liquid filtration systems, including process water, chemical processing, and fluid handling applications. Its 5-micron rating captures fine particulate before downstream equipment, protecting pumps, heat exchangers, and process components from contamination-related wear.

Key Features

• 5-micron filtration rating for effective fine particulate removal
• High Flow design supports elevated flow rates compared to standard bag filters
• Polyester construction offers broad chemical compatibility and durability
• Rated for operating temperatures up to 275 degrees F
• Size 1 form factor fits standard High Flow bag filter housings
• 7-inch diameter by 16.5-inch length for drop-in housing replacement

Compatibility

Designed as an OEM-style replacement for Size 1 High Flow bag filter housings used in industrial and commercial liquid filtration systems.

Installation Notes

Installation and replacement of bag filters should be performed by qualified maintenance technicians or filtration system specialists. Always depressurize and isolate the filter housing before opening the vessel and replacing the bag. Inspect the housing seal and o-ring for wear each time the bag is changed. Dispose of used filter media in accordance with applicable local regulations based on the fluid being filtered.
