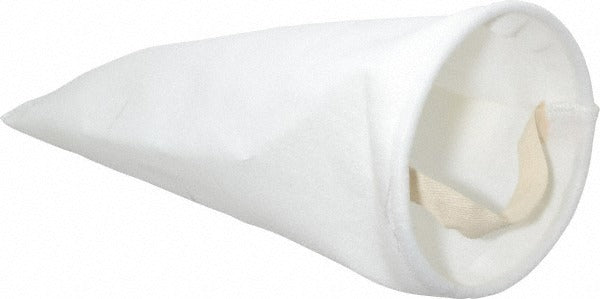

Parker G1PE100 High Flow Bag Filter 100 Micron Size 1

Product Description

The PARKER G1PE100 is a Size 1 high-flow bag filter rated at 100 microns, designed to remove particulate contamination from liquid process streams. Constructed from polyester, the bag measures 7 inches in diameter and 16.5 inches in length, conforming to standard Size 1 filter housing dimensions. It handles process temperatures up to 275 degrees F, making it suitable for a range of industrial and commercial liquid filtration applications. Licensed contractors, process technicians, and facilities maintenance personnel install this filter in high-flow bag filter housings as part of routine system maintenance or contamination control programs.

This filter is used in commercial and industrial liquid filtration systems where higher-volume throughput is required. The high-flow design reduces the number of housings needed for a given flow rate compared to standard bag filters. Typical applications include water treatment, chemical processing, food and beverage pre-filtration, and HVAC closed-loop system protection. The 100 micron rating targets coarser particulate loads, extending downstream equipment life and protecting pumps, heat exchangers, and control valves.

Key Features

• 100 micron filtration rating captures coarse particulate in liquid streams
• High-flow bag design supports higher volumetric flow rates in a single housing
• Polyester construction for compatibility with a broad range of process fluids
• Size 1 form factor fits standard Size 1 high-flow bag filter housings
• Rated for service up to 275 degrees F maximum working temperature
• 7 inch diameter by 16.5 inch length for consistent housing fit

Compatibility

Designed as an OEM-style replacement for standard Size 1 high-flow bag filter housings used in commercial and industrial liquid filtration systems.

Installation Notes

Installation should be performed by a qualified technician familiar with the process system. Isolate and depressurize the filter housing completely before opening and replacing the bag. Inspect the housing seal and o-ring for wear or damage prior to inserting the new bag. Follow the housing manufacturer's torque guidelines and applicable local codes when returning the housing to service.
