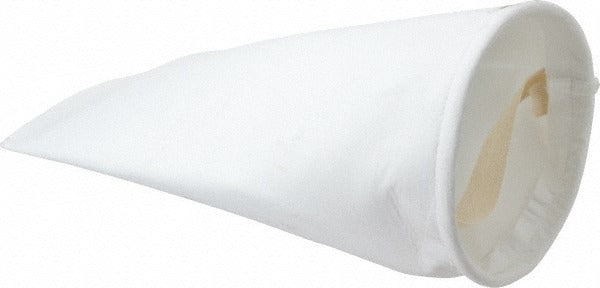

Parker G1PE1 High Flow Bag Filter Size 1 1 Micron

Product Description

The PARKER G1PE1 is a Size 1 high flow bag filter designed for industrial liquid filtration applications. Constructed from polyester media, it measures 7 inches in diameter and 16.5 inches in length, fitting standard Size 1 bag filter housings. With a 1-micron rating, this filter captures fine particulate from process liquids and is rated for continuous service up to 275 degrees F. It is installed by industrial maintenance technicians, process engineers, and fluid handling specialists in systems requiring high-volume flow with fine particulate removal.

The G1PE1 is suited for use in industrial processing, chemical handling, water treatment, and similar liquid filtration systems where high flow capacity and fine filtration are required. Its polyester construction makes it compatible with a range of process fluids and elevated operating temperatures. This filter is typically installed inside a compatible Size 1 bag filter housing as part of a recirculating or once-through filtration circuit.

Key Features

• 1-micron filtration rating captures fine particulate from process liquid streams
• High flow bag design reduces pressure drop compared to standard bag configurations
• Polyester media construction supports compatibility with a broad range of process fluids
• Rated for operating temperatures up to 275 degrees F
• Size 1 form factor fits standard Size 1 bag filter housings
• 7 inch diameter by 16.5 inch length conforms to industry-standard bag filter dimensions

Compatibility

Designed as an OEM-style replacement or direct-fit filter for standard Size 1 bag filter housings used in industrial liquid filtration systems.

Installation Notes

Installation and replacement of bag filters should be performed by qualified maintenance technicians or fluid systems specialists. Always depressurize and isolate the filter housing before opening and removing the spent bag. Verify that the housing O-ring or gasket is in serviceable condition before installing the new filter bag. Dispose of spent filter media in accordance with applicable local regulations based on the process fluid being filtered.
