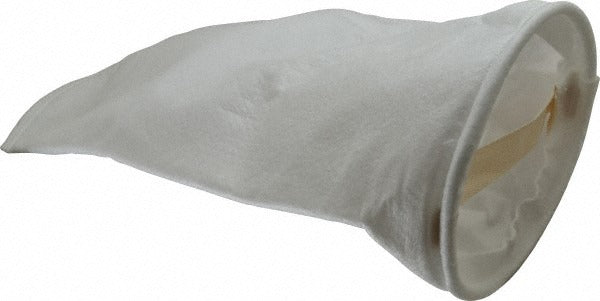

Parker G1P25 High Flow Bag Filter 25 Micron Size 1

Product Description

The PARKER G1P25 is a Size 1 high flow bag filter rated at 25 microns, designed for liquid filtration applications in industrial and commercial systems. Constructed from polypropylene, this bag filter traps particulate at the 25-micron threshold, protecting downstream equipment from contamination and wear. At 7 inches in diameter and 16.5 inches in length, it fits standard Size 1 high flow filter housings. It is typically installed by industrial maintenance technicians, plumbers, or mechanical contractors servicing process water, chemical handling, or HVAC fluid systems.

This filter is suited for systems requiring reliable particulate removal in moderate-to-high flow liquid lines. The polypropylene construction makes it appropriate for a range of water-based and mildly chemical process fluids. With a maximum working temperature of 200 degrees F, it handles hot process water and other elevated-temperature liquid streams. Typical installations include industrial process filtration, cooling tower side-stream filtration, and water treatment pre-filtration stages where a Size 1 high flow housing is already in place.

Key Features

• 25-micron filtration rating for effective particulate removal in liquid systems
• Size 1 high flow bag format fits standard compatible high flow filter housings
• Polypropylene body material provides broad chemical compatibility for water-based process fluids
• Rated to 200 degrees F maximum working temperature for hot process water applications
• 7-inch diameter by 16.5-inch length matches standard Size 1 high flow bag dimensions

Compatibility

Designed as an OEM-style replacement for Size 1 high flow bag filter housings accepting 7-inch diameter by 16.5-inch length filter bags.

Installation Notes

Installation should be performed by a qualified technician. Before replacing the filter bag, shut off flow to the housing and relieve any system pressure completely before opening the vessel. Ensure the new bag is seated properly in the housing basket to prevent bypass around the filter media. Follow applicable local and national plumbing or mechanical codes when servicing pressurized fluid systems.
