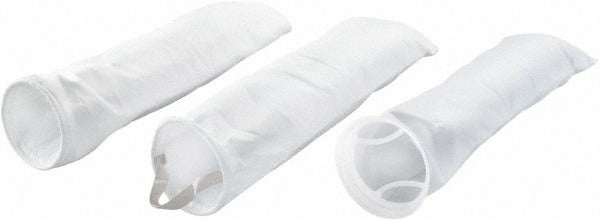

Parker G1P10 High Flow Bag Filter 10 Micron Size 1

Product Description

The PARKER G1P10 is a Size 1 high-flow bag filter rated at 10 microns, designed for industrial and commercial liquid filtration applications. Constructed from polypropylene, this filter measures 7 inches in diameter and 16.5 inches in length, fitting standard Size 1 high-flow filter housings. It captures particulate down to 10 microns while maintaining flow rates suited for high-demand process and fluid handling systems. With a maximum working temperature of 200 degrees F, it handles a broad range of compatible liquid media. Installation is typically performed by licensed plumbers, pipefitters, or maintenance technicians servicing process filtration or water treatment systems.

This filter is suited for residential, light commercial, and industrial liquid filtration setups where consistent particulate removal is required. Typical applications include process water, cooling water circuits, and general-purpose liquid filtration where a Size 1 high-flow housing is already installed. The polypropylene construction offers compatibility with a wide range of mildly aggressive water-based fluids and process liquids operating within its rated temperature range.

Key Features

• 10-micron filtration rating for effective particulate removal in liquid systems
• Size 1 high-flow form factor fits standard high-flow filter housings
• 7-inch diameter, 16.5-inch length for full Size 1 housing compatibility
• Polypropylene body material for broad chemical compatibility
• Rated to 200 degrees F maximum working temperature

Compatibility

Designed as an OEM-style replacement for Size 1 high-flow liquid filter housings used in commercial and industrial filtration systems.

Installation Notes

Filter bag replacement is typically performed by licensed plumbers or qualified maintenance technicians. Shut off the supply line and depressurize the housing fully before opening the filter vessel. Inspect the housing O-ring for wear and replace if damaged before reseating the new bag. Always confirm flow direction and seating of the filter bag collar against the housing basket prior to returning the system to service.
