Parker fn.lsin143812030 Copper Line Set 30 Ft

Product Description

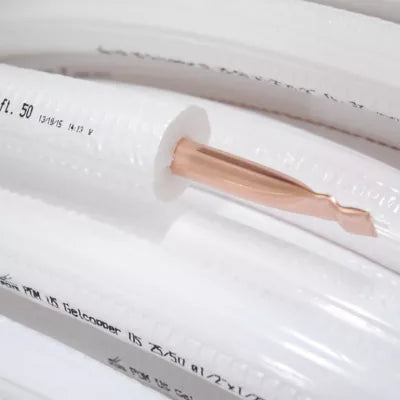

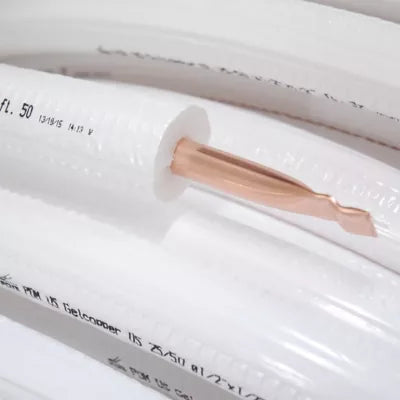

The PARKER fn.lsin143812030 is a TwinGel preinsulated copper line set combining suction and liquid lines mechanically bonded together in a single assembly. The configuration measures 1/4 inch liquid line and 3/8 inch suction line, enclosed in a white polyethylene outer jacket over foam insulation, and runs 30 feet in length. Flare nuts are included. The integrated twin-line design reduces handling time on the job site and eliminates the need to separately route and secure individual lines. The assembly is rated for high-pressure refrigerant applications including R-410A systems. Installed by HVAC technicians in residential and light commercial refrigerant line work.

This line set is suited for ductless mini-split systems, VRF systems, heat pumps, and unitary HVAC equipment requiring a 1/4 inch by 3/8 inch line set configuration at a 30-foot run. The 1/2 inch overall dimension reflects the combined insulated assembly profile. Foot markings are printed incrementally along the insulation to assist with accurate refrigerant charge calculations and to minimize copper waste during rough-in. The polyethylene outer jacket resists tearing during pull-through and bending on installation.

Key Features

• Suction and liquid lines mechanically attached for single-run installation
• UL723 Classified R39562 per ASTM E84 with a 25/50 flame and smoke rating
• UL Performance Verified for UV resistance with internal testing for a minimum of 5 years of UV exposure
• White polyethylene outer jacket protects foam insulation from tearing during installation
• Incremental foot markings on insulation for accurate initial unit charge and reduced copper waste
• Compatible with high-pressure refrigerant applications including R-410A
• Paintable insulation surface to match surroundings
• Flare nuts included

Compatibility

Designed for use in ductless mini-split, VRF, heat pump, and unitary HVAC systems requiring a 1/4 inch liquid line and 3/8 inch suction line combination. Suitable for applications using high-pressure refrigerants.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable mechanical codes and the equipment manufacturer's instructions. Isolate and recover any refrigerant from the system before disconnecting existing line sets. Flare connections should be made using proper flare tooling to ensure leak-free joints at both ends. Do not kink or bend the line set below its minimum bend radius, and secure the assembly at intervals appropriate to the run length and local code requirements.

Technical Specifications

• Liquid Line Diameter: 1/4 inch
• Suction Line Diameter: 3/8 inch
• Overall Insulated Assembly: 1/2 inch
• Length: 30 feet
• Refrigerant Compatibility: R-410A and other high-pressure refrigerants
• Outer Jacket Material: White polyethylene
• Insulation Type: Foam with polyethylene outer jacket
• UV Resistance: UL Performance Verified, minimum 5 years
• Flame and Smoke Rating: ASTM E84 25/50
• Certification: UL723 Classified R39562
• Included Hardware: Flare nuts
• Unit of Measure: Each

Standard Information

• Brand: PARKER
• Manufacturer Part Number: fn.lsin143812030
