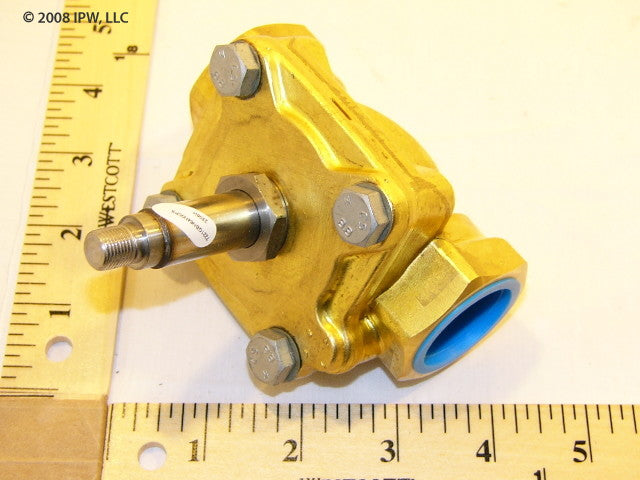

Parker Hannifin 7221GBN64N00 Solenoid Valve Brass

Product Description

The Parker Hannifin 7221GBN64N00 Solenoid Valve is an essential component for diverse hydraulic and pneumatic systems. It features a brass body with an NBR seat, ensuring durability and tight sealing capabilities under high-pressure conditions. This valve is ideally suited for controlling the flow of lubricated air, inert gases, water, and light oil.

• Direct acting valve with an orifice range from 1/8 inch to 1 inch.
• Can handle pressures up to 230 pounds without requiring a pressure differential.
• Compatible with vertical coil installation for optimal performance.

Product Highlights

This solenoid valve is also available with Class F and Class H coil options, meets UL Listing and CSA Certification requirements, and features explosion proof solenoid enclosures.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: 7221GBN64N00
• Weight: 2.6 pounds
• Dimensions: 8.01 x 8.01 x 8.01 inches

Technical Specifications

• Material: Brass
• Seat Material: NBR
• Maximum Pressure: 230 pounds
• Voltage Range: AC 24/60, 120/60, 110/50, 240/60, 220/50; DC 12, 24, 120
• Temperature: Up to 150F
• Approvals: UL Listed, CSA Certified
