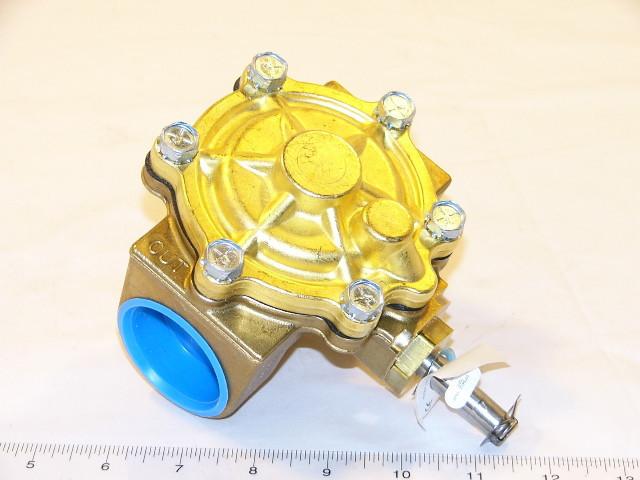

Parker Hannifin 24FS4C2380AAF Solenoid Valve 1.5 Inch NC 5/50# Steam, 5/150# H.Wtr

Product Description

The Parker Hannifin 24FS4C2380AAF solenoid valve is engineered for precision fluid control in various industrial applications. Ideal for both steam and hot water systems, this robust valve ensures reliable and efficient flow management.

• Robust brass body construction for prolonged durability.
• High flow capacity with a rating of 22.5 Cv.
• Designed for easy installation in confined spaces.

Product Highlights

This valve features a normally closed position that opens when energized, offering precise control. Suitable for use in pressures up to 150 PSI and temperatures up to 300 degrees Fahrenheit, it is an excellent choice for HVAC and hydronic systems.

Product Information

Standard Information

• Brand: Parker Hannifin
• MPN: 24FS4C2380AAF

Technical Specifications

• Type: Pilot Operated Solenoid Valve
• Function: Normally Closed
• Flow Capacity: 22.5 Cv
• Max Pressure: 150 PSI
• Max Temperature: 300°F
• Connection Type: FNPT x FNPT
• Dimensions: Width: 12.01 inches, Length: 12.01 inches, Height: 12.01 inches
