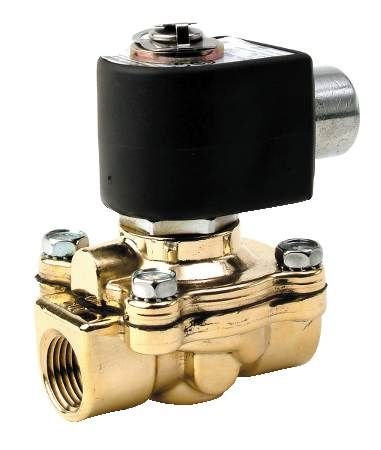

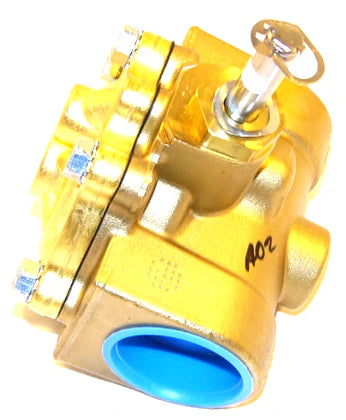

Parker Hannifin 24F24C2180AAF General Purpose Solenoid Valve 150 PSI

Product Description

The Parker Hannifin 24F24C2180AAF general purpose solenoid valve with a flow capacity of 22.5 Cv and a 1-1/2 inch NPT port is designed for robust performance in various applications. Constructed from high-quality brass, this valve is ideal for both commercial and industrial use.

• Efficiently handles water and air up to 150 PSI
• Brass body enhances durability and resistance to corrosion
• Normally closed, 2-way pilot-operated valve

Product Highlights

This valve is suitable for high-flow applications requiring minimal pressure differential. Its direct-lift operation facilitates reliable performance in systems like fire suppression and cooling of machine tools.

Product Information

Standard Information

• Brand: Parker Hannifin
• Application: Suitable for irrigation systems, food processing plants, and more

Technical Specifications

• Material: Brass
• Connection Type: FNPT x FNPT
• Max Pressure: 150 PSI
• Max Temperature: 180°F
• Flow Capacity (Cv): 22.5
• Body Pattern: 2-Way
