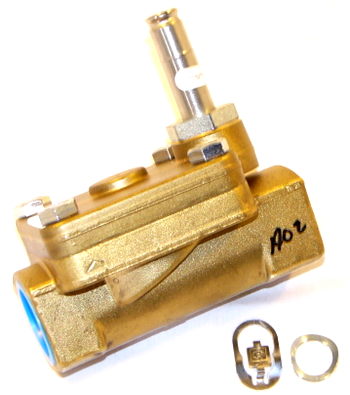

Parker 16FS5C2464ACH Solenoid Valve 12.2 Cv 1 Inch NPT Normally Closed

Product Description

The Parker Hannifin model 16FS5C2464ACH is a 2-way normally closed pilot operated solenoid valve engineered for controlling the flow of steam or hot water. This high-performance valve features a robust brass body and is ideal for various industrial applications.

• Designed for a maximum working pressure of 125 PSI.
• Features a flow capacity of 12.2 CV.
• Operates at temperatures up to 353°F.

Product Highlights

This valve is essential for systems requiring reliable flow control, operating electrically to open when energized and close when de-energized. Its brass construction ensures durability and resistance to high temperatures.

Product Information

Standard Information

• Brand: Parker Hannifin
• Model: 16FS5C2464ACH

Technical Specifications

• Body Material: Brass
• Type: 2-Way Normally Closed
• Port Size: 1 inch NPT
• Max Temperature: 353°F
• Max Pressure: 125 PSI
• Flow Capacity (Cv): 12.2
