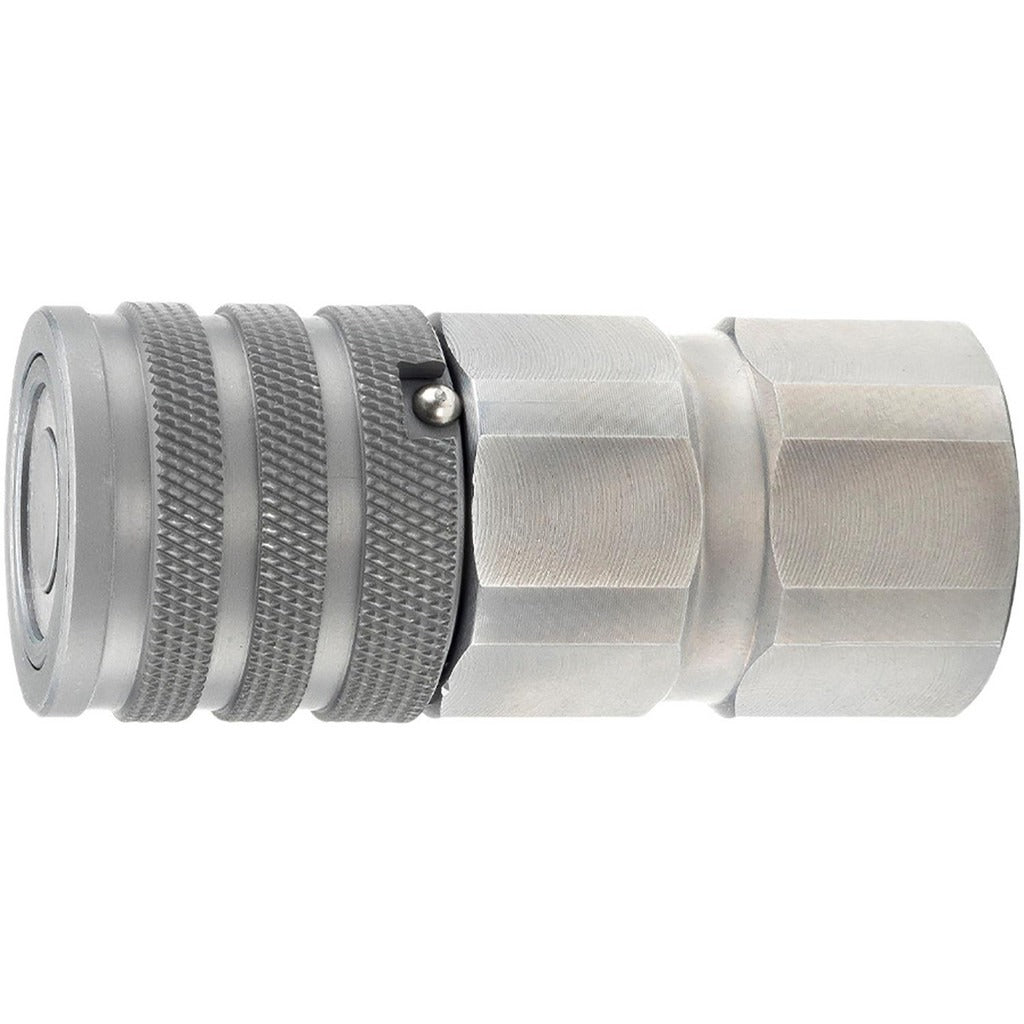

Parker FEM-751-12FB 3/4 in Female Bspp Hydraulic Fitting

Product Description

The PARKER FEM-751-12FB is a zinc-nickel plated steel hydraulic hose fitting designed for high-pressure fluid transfer applications in industrial and mobile hydraulic systems. This valved, inline straight coupler features a 3/4 inch female BSPP threaded connection with a G 3/4-14 thread size and is rated for a maximum working pressure of 5000 psi. The zinc-nickel plating provides corrosion resistance in demanding environments. Designed for licensed hydraulic technicians and fluid power specialists, this fitting installs on the hose end and threads into compatible female-ported components. It handles flow rates up to 26 GPM, making it appropriate for medium-to-high flow hydraulic circuits.

This fitting is suited for use in residential and commercial hydraulic tool circuits, skid loader attachments, and general-purpose mobile hydraulic installations. Its straight inline configuration and 3/4 inch hose inside diameter make it a direct-connect solution for hose assemblies in applications where BSPP-threaded ports are specified. Typical users include equipment service technicians, hydraulic hose shop installers, and industrial maintenance crews working with hydraulic tools and skid steer loader attachments.

Key Features

• Zinc-nickel plated steel construction for corrosion resistance in hydraulic environments
• Valved design helps control fluid loss during coupling and decoupling
• Rated to 5000 psi maximum working pressure for high-pressure circuit use
• Supports up to 26 GPM maximum flow rate
• G 3/4-14 BSPP female thread, straight inline configuration
• Meets ISO 16028 standard for flat-face hydraulic couplings

Compatibility

Designed for use with hydraulic tools and skid loader attachments requiring 3/4 inch BSPP-threaded hose end fittings. Part of the PARKER FEM series of hydraulic couplings.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and bleed down the hydraulic system completely before removing or installing any hose fittings. Inspect threads and sealing surfaces for damage before assembly and ensure thread type compatibility — BSPP threads are not interchangeable with NPT or SAE straight-thread ports. Follow applicable industry standards and equipment manufacturer torque and assembly guidelines when making up hose ends.
