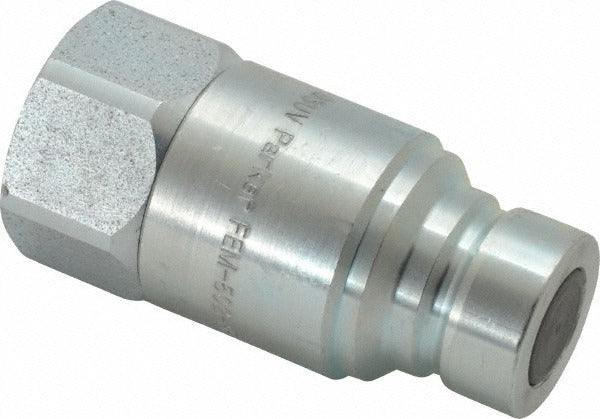

Parker FEM-502-8FP Female Pipe Rigid Fitting 3625 Psi

Product Description

The PARKER FEM-502-8FP is a female pipe rigid fitting designed for use in hydraulic hose assemblies. Built from steel with a threaded NPSF connection, this straight-body fitting accepts a 1/2-inch hose and mates via a 1/2-14 thread. It carries a maximum working pressure of 5000 psi and is rated for up to 12.00 GPM flow. The FEM-502-8FP measures 2.77 inches in overall length and weighs 0.54 pounds. It conforms to ISO 16028 standards. Licensed hydraulic technicians and fluid power specialists install this type of fitting in high-pressure hydraulic circuits across a wide range of mobile and industrial equipment.

This fitting is suited for hydraulic hose assemblies on hydraulic tools and skid loader attachments. Its rigid, non-swivel body makes it appropriate for fixed-position terminations where hose movement after installation is not required. The straight configuration and 1/2-inch hose size make it a common choice in mid-pressure hydraulic circuits where a secure, leak-resistant threaded pipe connection is needed at the hose end.

Key Features

• Maximum working pressure of 5000 psi for demanding hydraulic circuit applications
• NPSF threaded connection type for secure, rigid pipe-end termination
• 1/2-14 thread size with 0.50-inch body diameter
• Maximum flow rate of 12.00 GPM
• Steel construction for durability in hydraulic service environments
• Conforms to ISO 16028 standard

Compatibility

Designed for use with hydraulic tools and skid loader attachments. Intended for 1/2-inch hydraulic hose assemblies requiring a female pipe rigid fitting with NPSF threading.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before disconnecting or assembling any fittings. Inspect thread condition and ensure proper thread engagement before applying system pressure. Follow equipment manufacturer torque guidelines and applicable fluid power safety standards during assembly.
