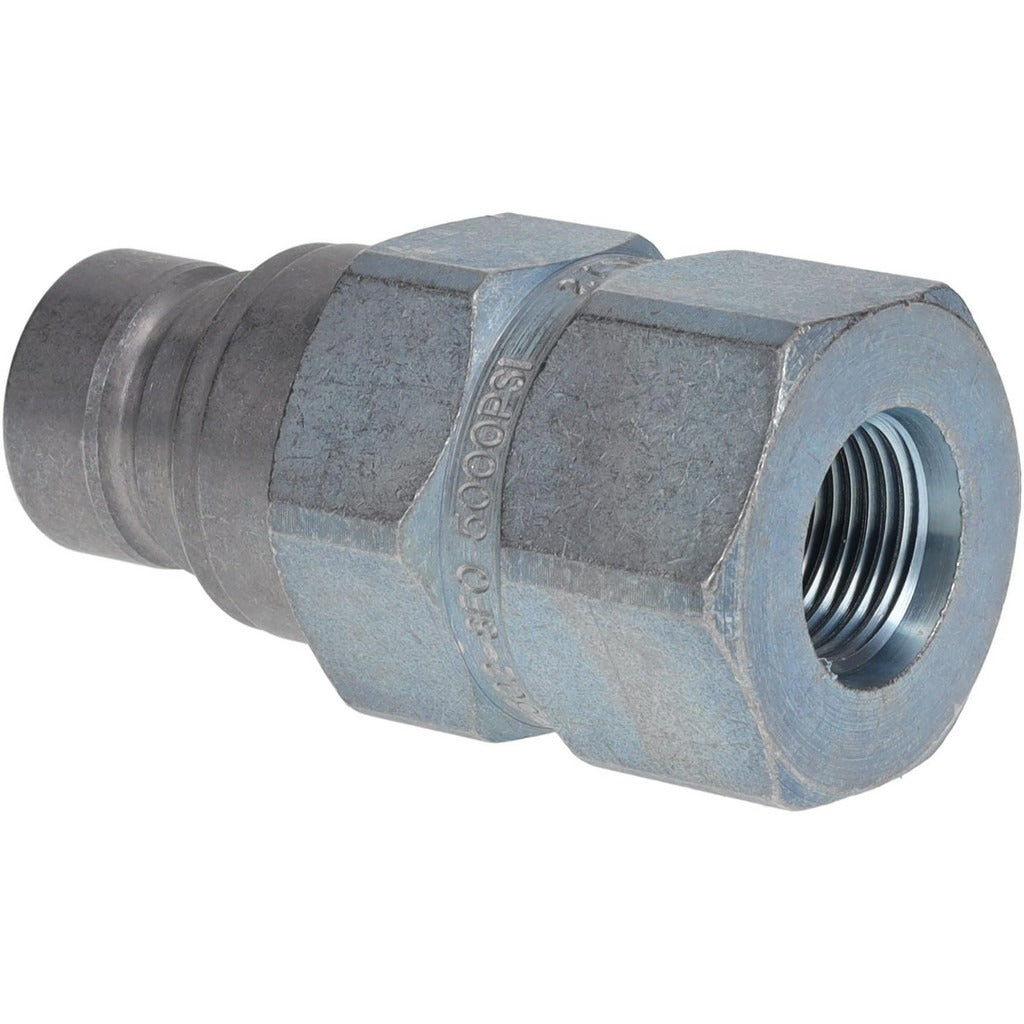

Parker FEM-502-8FO Female Straight Thread Nipple 5000 Psi

Product Description

The PARKER FEM-502-8FO is a female straight thread nipple designed for hydraulic hose assemblies operating at up to 5,000 psi. Constructed from steel, this straight-body fitting uses SAE threaded connections to provide a secure, leak-resistant interface in demanding hydraulic circuits. It carries a 3/4-16 thread size with a 1/2-inch hose size and 1/2-inch body diameter, measuring 2.77 inches in overall length. Rated for a maximum flow rate of 12.00 GPM, it meets ISO 16028 standards. Licensed hydraulic technicians and equipment mechanics are the primary installers for this type of fitting.

This fitting is suited for use with hydraulic tools and skid loader attachments in both mobile and stationary hydraulic systems. Its threaded connection type makes it a practical choice for applications where a reliable, reusable mechanical joint is required under continuous high-pressure service. The straight configuration simplifies inline routing where no angular offset is needed.

Key Features

• Rated to 5,000 psi maximum working pressure for high-demand hydraulic circuits
• Steel construction for durability in heavy-duty hydraulic environments
• SAE straight thread with 3/4-16 thread size for secure, leak-resistant connections
• Supports up to 12.00 GPM maximum flow rate
• Meets ISO 16028 standards
• Straight body shape for simplified inline hose routing

Compatibility

Designed for use with hydraulic tools and skid loader attachments. Verify thread size and hose size compatibility before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician or equipment mechanic. Depressurize and isolate the hydraulic system completely before removing or installing any fittings. Inspect threads for damage and ensure mating threads are clean before assembly. Follow applicable hydraulic system service procedures and manufacturer torque guidelines for SAE straight thread fittings.
