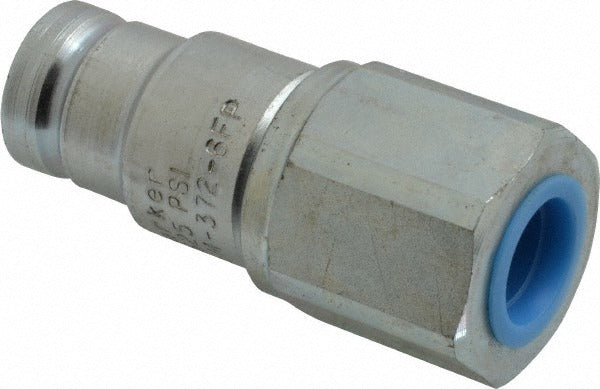

Parker FEM-372-6FP Female Pipe Rigid Fitting 3/8 in Npsf

Product Description

The PARKER FEM-372-6FP is a straight, female pipe rigid fitting designed for hydraulic hose assemblies in high-pressure fluid power systems. Machined from steel with an NPSF threaded connection, it provides a fixed, non-swiveling attachment point between a hydraulic hose and a threaded port. The fitting carries a maximum working pressure of 5,000 psi and measures 2.48 inches in overall length with a 3/8-inch body diameter. It is sized for 3/8-inch hose with a 3/8-18 thread and meets ISO 16028 standards. Installation is performed by licensed hydraulic technicians and fluid power mechanics working on mobile and stationary hydraulic equipment.

This fitting is suited for use with hydraulic tools and skid loader attachments operating in demanding, high-cycle environments. The straight configuration and rigid design make it appropriate for fixed-position port connections where hose routing does not require swivel articulation. It is commonly used in both mobile equipment service and industrial hydraulic plumbing applications where a secure, leak-resistant threaded joint is required.

Key Features

• Maximum working pressure rated to 5,000 psi for heavy-duty hydraulic service
• NPSF thread form on 3/8-18 thread size for reliable sealing in threaded ports
• Straight rigid body eliminates swivel movement for fixed-position hose terminations
• Steel construction provides durability in high-pressure, high-cycle applications
• Meets ISO 16028 standards for hydraulic quick-action couplings and fittings
• Maximum flow rate of 6.00 GPM supports typical hydraulic tool and attachment circuits

Compatibility

Designed for use with hydraulic tools and skid loader attachments. Sized for 3/8-inch hydraulic hose with a 3/8-18 NPSF threaded port connection. Part of the PARKER FEM series of female pipe rigid fittings.

Installation Notes

Installation must be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect the mating port threads for damage or contamination before assembly. Do not exceed the rated working pressure of the system or this fitting.
