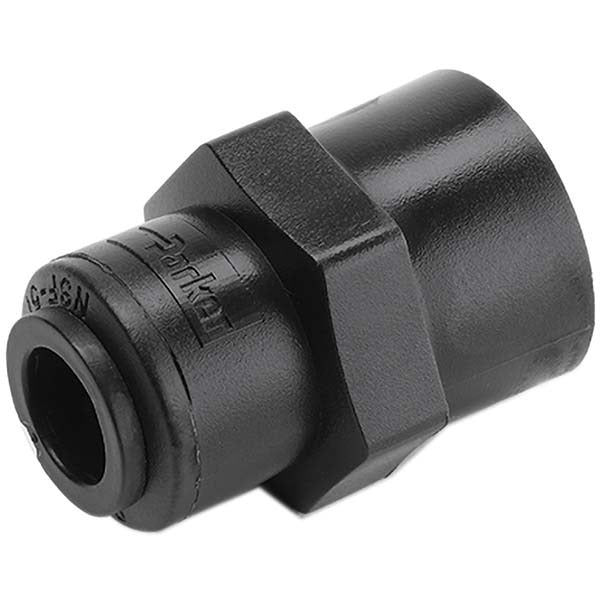

Parker FB8FC8-HBLK Push-to-connect Fitting 1/2 in

Product Description

The PARKER FB8FC8-HBLK is a push-to-connect tube fitting connector designed for fast, tool-free connections in pneumatic and fluid handling systems. Built from Kynar (PVDF) with an FKM o-ring, this fitting handles up to 250 psi and a vacuum rating of 28 inches-Hg, making it suitable for demanding chemical, high-purity, and corrosive-media applications. It accepts 1/2 inch OD tubing and connects to 1/2 inch NPTF threaded ports. The black color coding aids quick identification on multi-line installations. Licensed plumbers, HVAC technicians, and industrial pipefitters typically specify this fitting when chemical resistance and leak-free push-to-connect performance are required.

This connector is used in residential and light commercial fluid and pneumatic systems where Kynar construction is required for chemical compatibility. Typical applications include chemical feed lines, high-purity water systems, pool and spa chemical dosing equipment, and HVAC condensate or refrigerant-adjacent plumbing where aggressive media may be present. The NPTF thread provides a pressure-tight mechanical seal without requiring additional sealant tape in many installations, though local code and manufacturer guidelines should govern final practice.

Key Features

• Kynar (PVDF) body provides superior resistance to chemicals, UV exposure, and corrosive media
• FKM o-ring sealing element rated for compatibility with a wide range of aggressive fluids
• Push-to-connect design allows fast, tool-free tube insertion and secure retention
• Rated to 250 psi working pressure and 28 inches-Hg vacuum
• 1/2 inch NPTF male thread for a pressure-tight port connection
• Black color coding supports quick line identification in multi-fitting installations

Compatibility

Designed to accept 1/2 inch OD tubing and thread into 1/2 inch NPTF female ports. Suitable as an OEM-style push-to-connect connector fitting in pneumatic, fluid handling, and chemical service systems requiring Kynar construction.

Installation Notes

Depressurize and drain the system completely before removing or installing any push-to-connect fitting. Ensure tubing is cut squarely with no burrs and is inserted fully until it seats against the internal stop. For NPTF threads, hand-tighten first, then apply wrench turns per the fitting manufacturer guidelines — avoid overtightening, which can crack Kynar bodies. This fitting should be installed by a qualified plumber, pipefitter, or HVAC technician in accordance with applicable codes.
