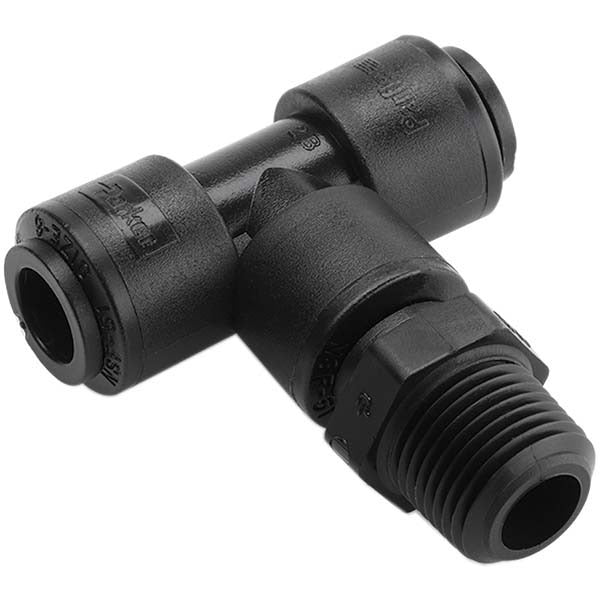

Parker FB6MTS6-HBLK Male Swivel Branch Tee 3/8 in Od

Product Description

The PARKER FB6MTS6-HBLK is a push-to-connect male swivel branch tee tube fitting designed for fluid and pneumatic line connections requiring a 90-degree branch takeoff with a male threaded port. Constructed from Kynar (PVDF) with a black finish, this fitting is rated to 250 psi and carries a vacuum rating of 28 in-Hg, making it suitable for both pressure and vacuum service. The swivel design simplifies installation by allowing the male thread to rotate during makeup, reducing stress on the tubing run. Licensed trades and industrial maintenance technicians install this fitting in process, pneumatic, and fluid handling systems.

This fitting is sized for 3/8 inch outside diameter tubing and uses a 3/8 inch NPTF male thread on the branch port. Kynar construction offers strong resistance to aggressive chemicals, UV exposure, and elevated temperatures, making it appropriate for chemical processing, water treatment, and similar service environments. The FKM o-ring provides reliable sealing performance across a broad temperature range. This is a single-piece unit sold individually.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and secure retention
• Swivel male branch port simplifies thread engagement without torquing the tubing assembly
• Kynar (PVDF) body provides excellent chemical and UV resistance
• FKM o-ring delivers broad chemical and temperature compatibility at the seal interface
• Rated to 250 psi working pressure with a 28 in-Hg vacuum rating
• Black color finish for visual identification in multi-line installations

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for 3/8 inch OD tubing systems using 3/8 inch NPTF male branch connections in pneumatic, fluid, or chemical service applications.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or qualified industrial maintenance technicians. Depressurize and isolate the line completely before removing any existing fitting or inserting tubing. Verify that tubing outside diameter and end-cut squareness meet the fitting manufacturer requirements before insertion. Thread connections should comply with applicable NPTF engagement standards and local plumbing or mechanical codes.
