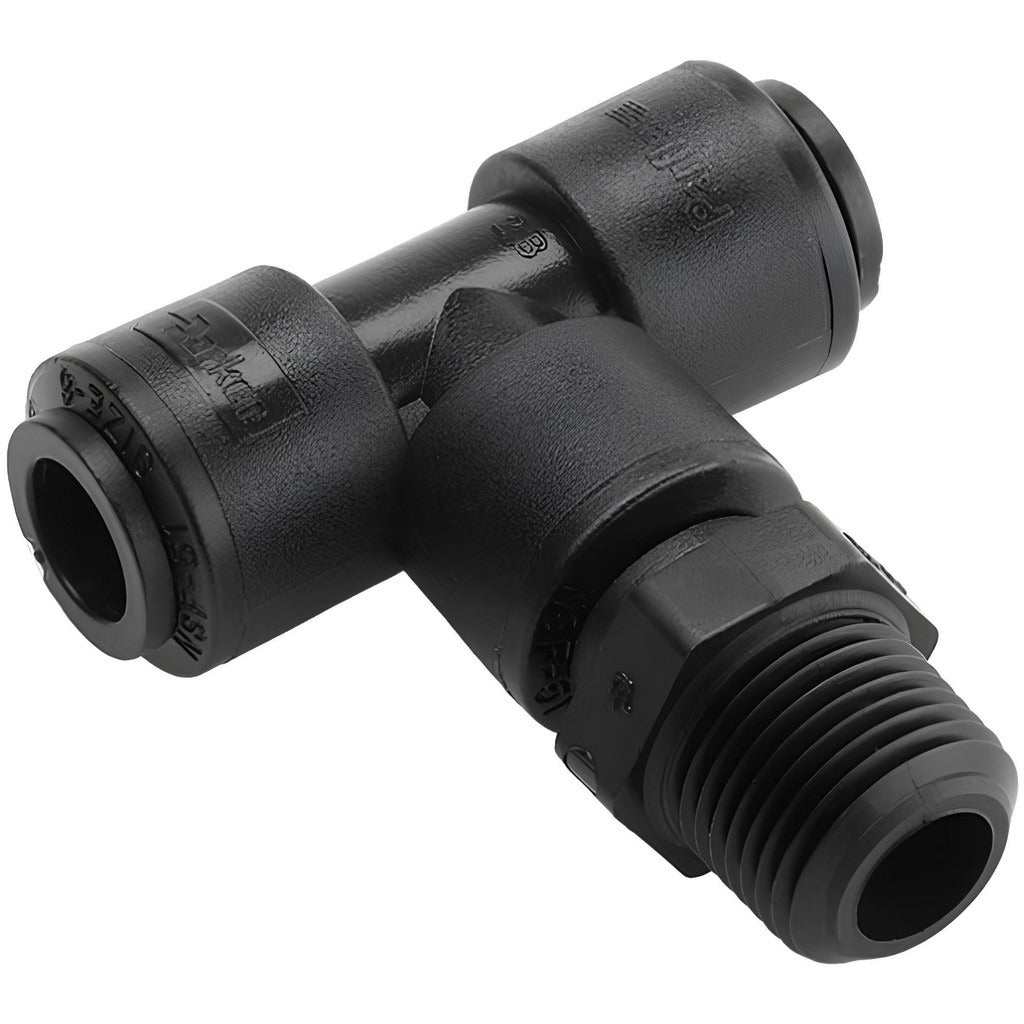

Parker FB6MTS2-HBLK Male Swivel Branch Tee 3/8in Od

Product Description

The PARKER FB6MTS2-HBLK is a push-to-connect male swivel branch tee tube fitting designed for fast, tool-free tubing connections in fluid and pneumatic systems. Constructed from Kynar (PVDF), this fitting offers strong chemical resistance and handles working pressures up to 300 psi. The male swivel branch tee configuration allows a single fitting to branch flow in a tee pattern while the swivel feature simplifies alignment during installation. It accepts 3/8 inch OD tubing and features a 1/8 inch NPTF male thread on the branch port. Plumbers, HVAC technicians, and instrumentation specialists install this fitting in process lines, control systems, and compressed air or fluid distribution circuits.

This fitting is suited for residential and light commercial applications where push-to-connect speed and chemical-resistant materials are required. The Kynar construction makes it a practical choice for mildly corrosive media, chemical feed lines, water treatment systems, and pneumatic control tubing runs. The 1/8 inch NPTF thread provides a pressure-tight mechanical seal at the branch connection without requiring sealant tape in all cases, though thread sealant is commonly used per installer preference and applicable codes.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion for 3/8 inch OD tubing
• Kynar (PVDF) construction provides excellent chemical resistance
• Rated up to 300 psi working pressure
• Male swivel branch tee configuration simplifies alignment and branch routing
• 1/8 inch NPTF male thread for secure, pressure-tight port connection
• Compact and lightweight at 0.03 pounds

Compatibility

Designed for use with 3/8 inch OD tubing in push-to-connect pneumatic and fluid systems requiring a 1/8 inch NPTF male branch thread connection.

Installation Notes

Installation is performed by plumbers, HVAC technicians, or instrumentation technicians. Shut off and depressurize the line completely before removing or installing any push-to-connect fitting. Ensure tubing ends are cut cleanly and squarely, and that tube OD is within specification before insertion. Confirm thread engagement meets the requirements of applicable codes such as IPC or IFGC before returning the system to service.
