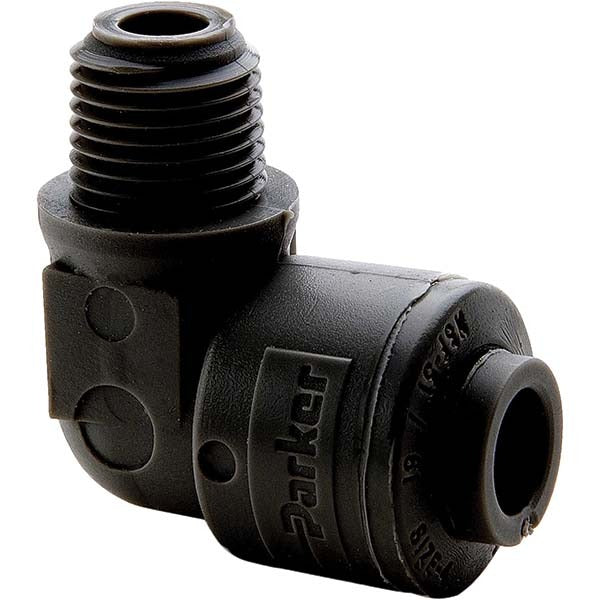

Parker FB6ME6-HBLK Push-to-connect Male Elbow 3/8 in

Product Description

The PARKER FB6ME6-HBLK is a push-to-connect male elbow tube fitting designed for quick, tool-free connections in fluid and pneumatic systems. Constructed from Kynar with an FKM o-ring, it handles up to 250 psi and a vacuum rating of 28 in-Hg. The black color finish and NPTF threaded male end allow for secure, leak-resistant installation. With a 3/8 inch tube outside diameter and 3/8 inch NPTF thread, this fitting suits applications where a 90-degree directional change is needed without soldering or compression tools. Licensed plumbers, HVAC technicians, and industrial pipefitters commonly install this type of fitting in tight-space routing scenarios.

This fitting is suited for residential and light commercial plumbing, HVAC, and fluid-handling systems where push-to-connect technology speeds up installation. The Kynar construction provides resistance to chemicals and moisture, making it appropriate for water treatment, chemical feed lines, and HVAC condensate or refrigerant-adjacent plumbing. The NPTF thread type ensures a dry-seal connection on the male end, reducing reliance on thread sealant tape in compatible fittings. The compact elbow profile is useful in panel builds and equipment enclosures where tubing must change direction in a confined space.

Key Features

• Kynar body construction for chemical and moisture resistance
• FKM o-ring for reliable sealing performance under pressure
• 250 psi maximum pressure rating
• 28 in-Hg vacuum rating for low-pressure vacuum applications
• 3/8 inch NPTF male thread provides a dry-seal threaded connection
• Push-to-connect design allows tool-free tube insertion and removal
• Black color finish for visual identification in multi-line systems

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for systems using 3/8 inch outside diameter tubing with 3/8 inch NPTF male thread connections.

Installation Notes

Installation is performed by licensed plumbers or HVAC technicians. Shut off system pressure and relieve any residual line pressure before removing or installing fittings. Ensure tubing is cut square and deburred before inserting into the push-to-connect port to achieve a proper seal. Verify thread compatibility and apply appropriate thread sealant per local plumbing code requirements before engaging the NPTF male end.
