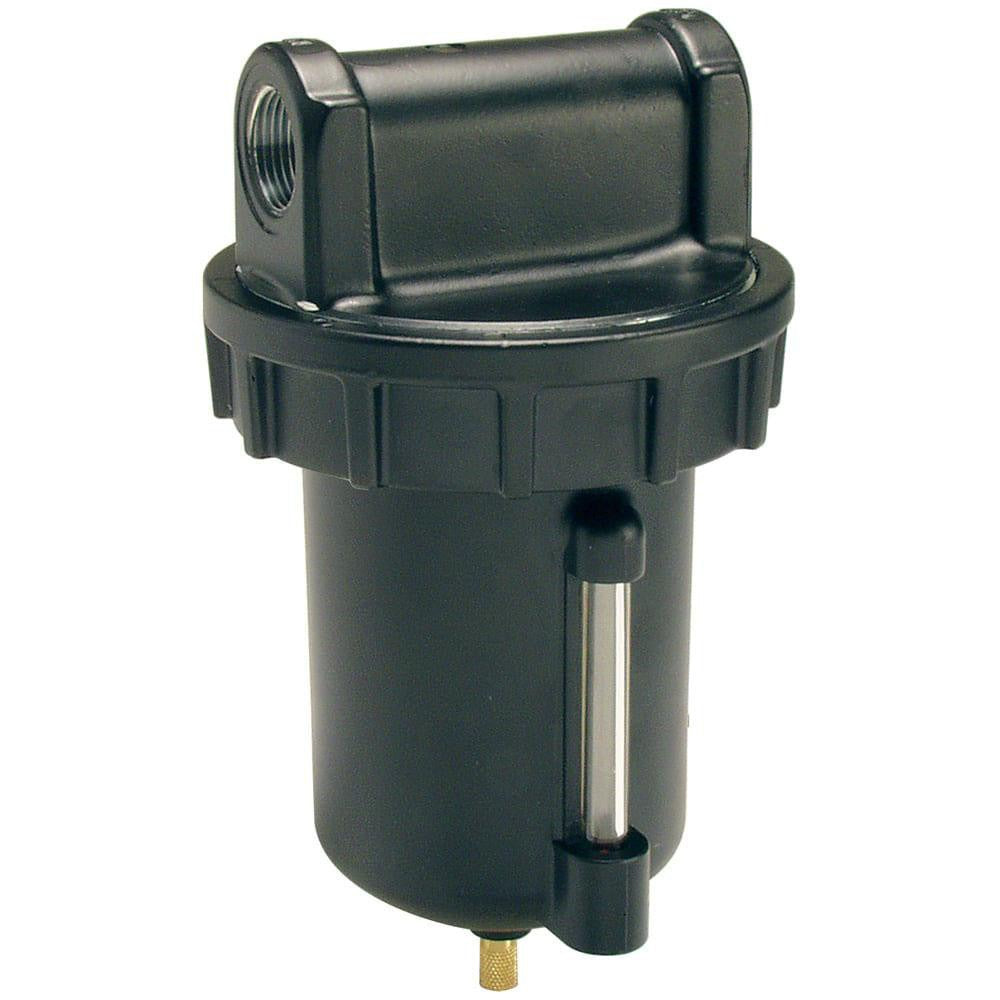

Parker F602-08WJR/M4 Air Filter 1 in Npt 240 Scfm

Product Description

The PARKER F602-08WJR/M4 is a heavy-duty compressed air filter designed to remove particulate contamination from compressed air systems. Rated at 240 standard cubic feet per minute (SCFM), it handles high-demand industrial and commercial applications where clean, dry air is critical to downstream equipment performance. The 40-micron polypropylene filter media captures dirt, pipe scale, and other solid contaminants before they reach tools, controls, or pneumatic actuators. A zinc bowl with integrated sight glass allows technicians to monitor fluid accumulation without interrupting service. The manual drain requires periodic attention during operation to remove collected moisture and contaminants from the 16-ounce bowl.

This filter is suited for use in compressed air distribution systems in industrial facilities, commercial HVAC mechanical rooms, and production environments. It installs inline on 1-inch NPT compressed air lines and is typically positioned upstream of regulators, lubricators, and sensitive pneumatic equipment. The heavy-duty series is built for continuous-duty installations where flow capacity and serviceability are priorities. Minimum operating temperature is 40 degrees F.

Key Features

• 240 SCFM rated flow capacity for high-demand compressed air systems
• 40-micron polypropylene filter media removes solid particulate contamination
• Zinc bowl with sight glass for visual monitoring of bowl fluid level
• 16-ounce bowl capacity with manual drain for periodic maintenance
• 1-inch NPT inlet and outlet connections for direct inline installation
• Compact profile at 8.8 inches tall and 4.9 inches wide

Compatibility

Designed for inline installation on 1-inch NPT compressed air distribution lines in industrial and commercial pneumatic systems. Verify system pressure and temperature ratings against installation requirements before use.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system piping and pneumatic safety procedures. Depressurize and lock out the compressed air line completely before installing or servicing this filter. Ensure flow direction matches the arrow or inlet marking on the filter body. Drain the bowl manually at regular intervals to prevent moisture carryover into downstream equipment.
