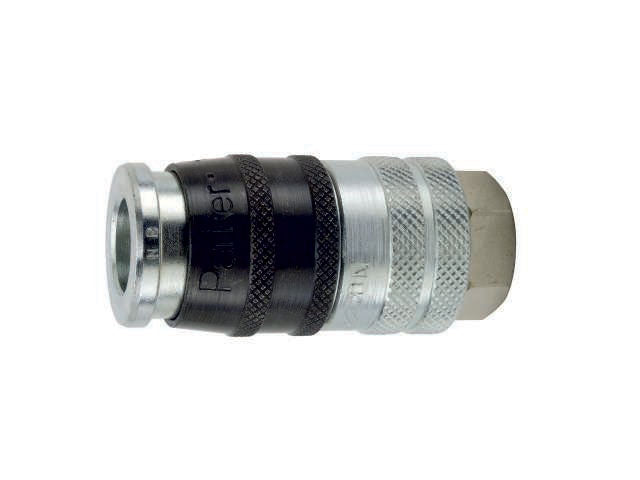

Parker EZ-251-6FP E-Z Mate Series Coupler - Female Pipe

Product Description

The Parker EZ-251-6FP is a push-to-connect pneumatic coupler designed for easy and safe connections in pneumatic systems. This female pipe fitting provides a self-locking valve sleeve to prevent unintended disconnections. The integral shut-off valve allows for safe connection and disconnection at zero pressure.

• Body size is one fourth inch.
• Compatible with three eighths NPTF threads.
• Maximum pressure rating of three hundred PSI.

Product Highlights

Parker's E-Z Mate couplers are ideal for industrial applications requiring a reliable quick disconnect solution.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: EZ-251-6FP

Technical Specifications

• Body Size: 1/4 Inch
• Thread 1: 3/8 NPTF
• Max Pressure: 300 PSI (20 bar)
• Material: Steel
• Quick Coupler Type: Pneumatic Push-to-Connect
• Interchange: Industrial Interchange
• Application: Pneumatic
• Trade Name: E-Z Mate
• Configuration Type: Female NPTF
• Max Pressure Range: 250 to 499 PSI (17 to 34 bar)
• Parker Division: Quick Coupling
• Parker Group: Fluid Connector
