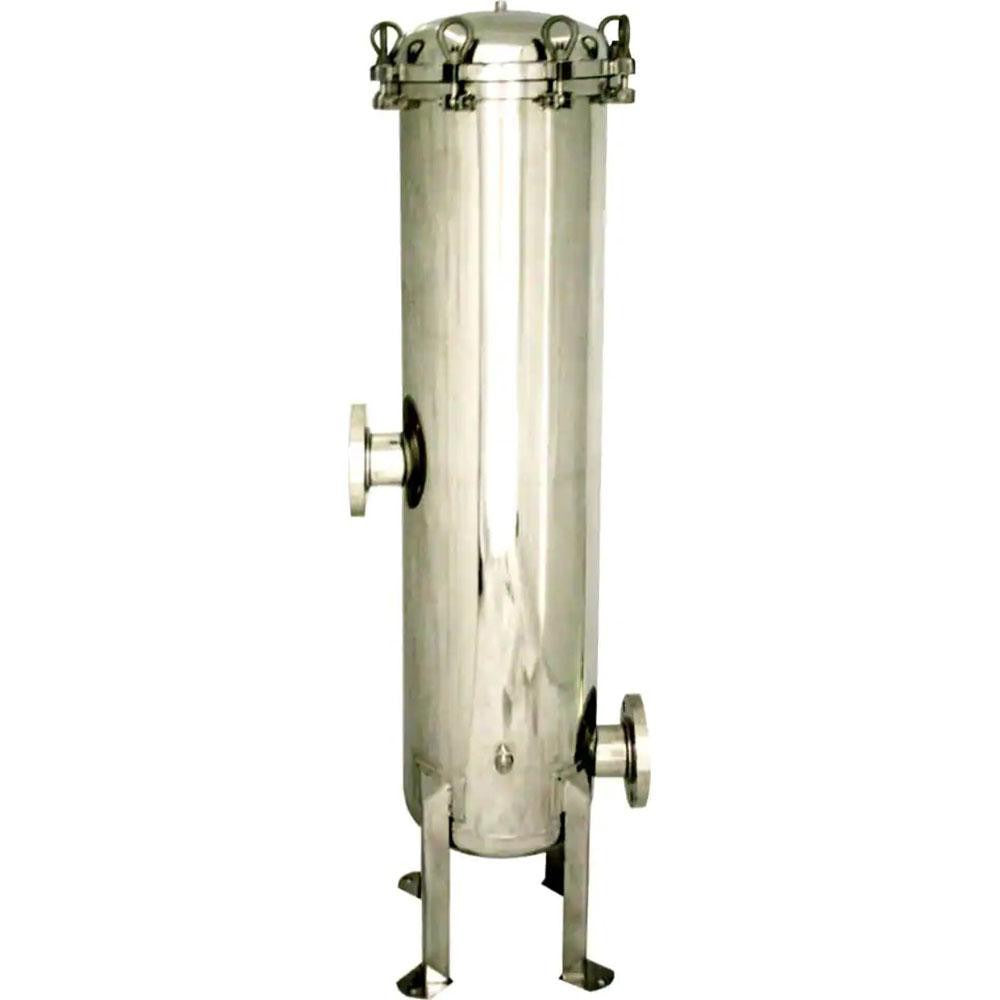

Parker EHG05S2T Cartridge Filter Housing 25 Gpm 5 Cartridge

Product Description

The PARKER EHG05S2T is a multi-cartridge filter housing designed for industrial and commercial fluid filtration systems. It accepts five filter cartridges with a 2.5-inch outside diameter, providing high-capacity filtration in a single inline unit. Rated for a maximum working pressure of 150 psi and a maximum flow rate of 25 GPM, this housing handles demanding flow applications without sacrificing filtration integrity. The 2-inch pipe connection allows straightforward integration into existing process or utility piping. At 37 pounds, the housing is a substantial, permanently mounted unit intended for stationary system installation by qualified plumbing or industrial maintenance professionals.

This filter housing is suited for commercial and industrial process water, fluid handling, and utility water treatment applications where high flow volume and multi-stage particulate removal are required. The five-cartridge configuration allows for greater total filter surface area and longer service intervals compared to single-cartridge housings. It is typically installed in mechanical rooms, process lines, or water treatment skids where 2-inch pipe infrastructure is already present. Licensed plumbers and industrial pipefitters are the primary installers for this type of housing.

Key Features

• Five-cartridge configuration supports high flow capacity and extended filter life
• Rated to 150 psi maximum working pressure for demanding system environments
• Maximum flow rate of 25 GPM suits commercial and light industrial process lines
• 2-inch pipe connection integrates directly with standard pipe infrastructure
• Accepts cartridges with 2.5-inch outside diameter for broad cartridge compatibility
• Maximum working temperature of 300 degrees F accommodates hot-water and process fluid applications

Compatibility

Designed as an OEM-style replacement or new-installation housing for commercial and industrial fluid filtration systems requiring a five-cartridge, 2-inch pipe-connected filter assembly rated at 150 psi and 25 GPM.

Installation Notes

Installation should be performed by a licensed plumber or qualified industrial pipefitter in accordance with applicable plumbing codes such as the IPC. Isolate and depressurize the system completely before mounting or servicing the housing. Ensure inlet and outlet piping is properly supported to avoid stress on the housing body. Always verify cartridge seating and housing closure torque per the manufacturer service documentation before returning the system to pressure.
