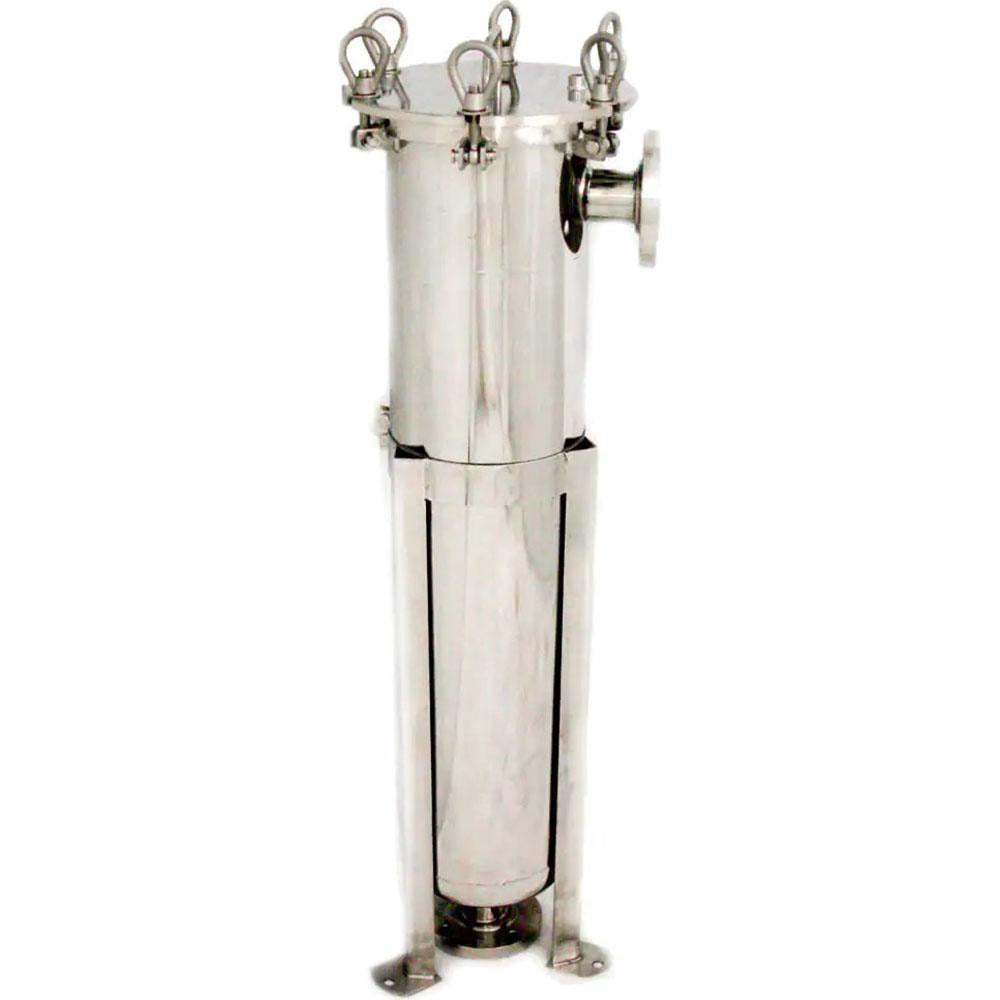

Parker EBG141T Bag Filter Housing Size 4 1 Inch Npt Ss

Product Description

The PARKER EBG141T is a stainless steel bag filter housing designed for industrial and commercial liquid filtration systems. It accepts a Size 4 filter bag and is built for high-flow applications, handling up to 40 GPM at a maximum working pressure of 150 psi. The housing is constructed from 304 stainless steel, making it suitable for demanding process environments where corrosion resistance and durability are required. At 30 inches in overall length and 6 inches in diameter, it provides substantial filter surface area for extended service intervals. Licensed plumbers, pipefitters, and process technicians are the typical installers for this type of housing.

The EBG141T is rated for liquid service up to 300 degrees F, making it appropriate for both ambient and elevated-temperature process fluid applications in industrial facilities, manufacturing plants, and commercial mechanical rooms. The 1-inch NPT end connections allow for straightforward integration into existing piping systems. Its gray color and robust 304 stainless steel construction suit indoor and outdoor installations where chemical and temperature exposure is a factor.

Key Features

• 304 stainless steel construction for corrosion resistance in liquid service
• Accepts Size 4 filter bag for high-capacity filtration
• Maximum flow rate of 40 GPM for high-throughput applications
• Rated to 150 psi maximum working pressure
• Maximum working temperature of 300 degrees F
• 1-inch NPT end connections for standard pipe system integration

Compatibility

Designed for use with liquid filtration systems requiring a Size 4 bag filter element. Suitable for industrial process, commercial mechanical, and fluid handling systems using 1-inch NPT piping.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable local mechanical and plumbing codes. Depressurize and drain the system completely before opening the housing or replacing the filter bag. Use thread sealant appropriate for the process fluid on NPT connections. Ensure inlet and outlet flow direction matches the housing orientation before final piping.
