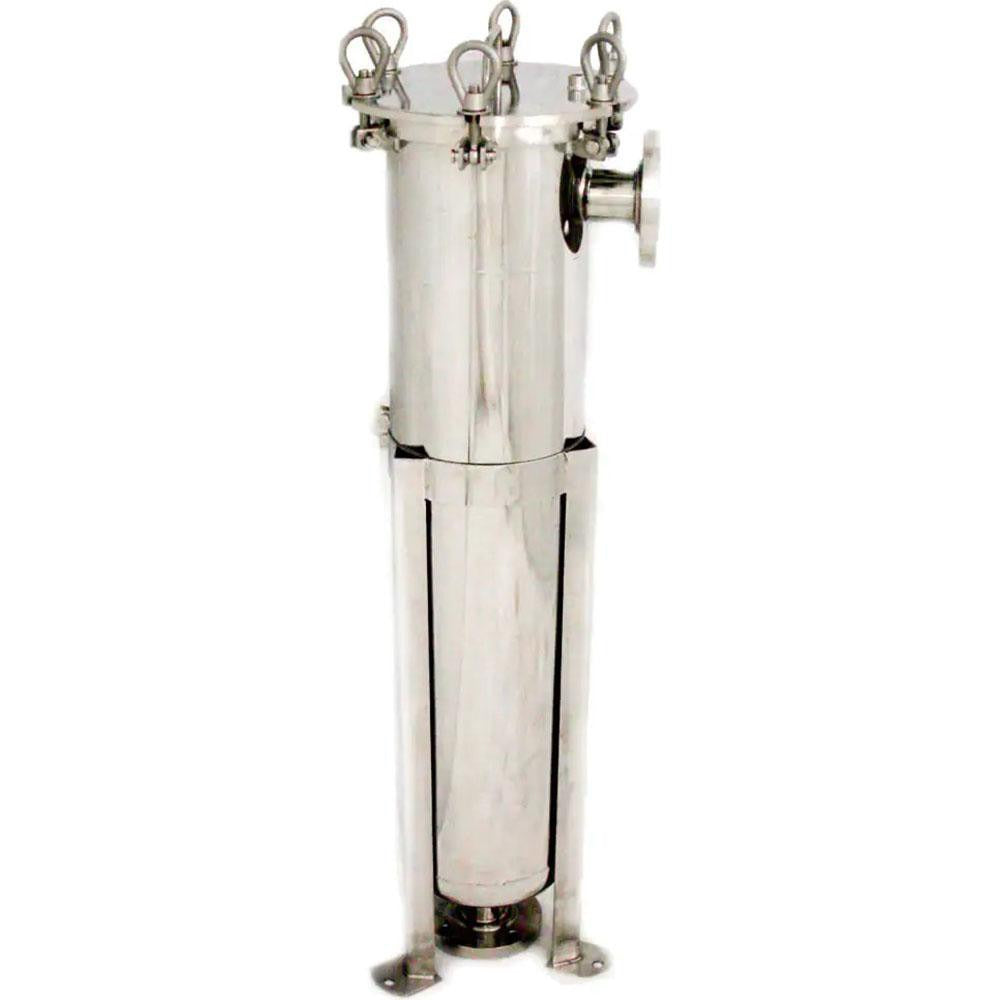

Parker EBG131T Bag Filter Housing Size 3 1in Npt 20 Gpm

Product Description

The PARKER EBG131T is a stainless steel bag filter housing designed for liquid filtration in industrial and commercial process systems. Built from 304 stainless steel, this housing accepts a Size 3 filter bag and handles flow rates up to 20 GPM at working pressures up to 150 psi. The unit measures 23 inches in overall length with a 6-inch outer diameter and connects via 1-inch NPT end connections. Its gray finish and stainless construction make it well suited for demanding fluid handling environments. Licensed plumbers, pipefitters, and industrial maintenance technicians are the typical installers for this type of housing.

The EBG131T is intended for use with liquid media in applications where particulate removal is required inline. Typical installations include process water systems, chemical handling lines, cooling water circuits, and general industrial fluid filtration. The 1-inch NPT connections fit standard threaded pipe assemblies, and the Size 3 bag configuration provides a larger filter area suited for moderate-flow systems. This housing is rated for fluid temperatures up to 300 degrees F, making it compatible with elevated-temperature process streams.

Key Features

• 304 stainless steel construction for corrosion resistance in liquid service
• Size 3 bag filter configuration for moderate-flow particulate removal
• 1-inch NPT end connections for standard threaded pipe integration
• Maximum flow rate of 20 GPM to suit moderate-volume process lines
• Rated to 150 psi maximum working pressure
• Maximum operating temperature of 300 degrees F for elevated-temperature liquid applications

Compatibility

Designed as an OEM-style inline bag filter housing for liquid process piping systems using Size 3 filter bags and 1-inch NPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and the system designer's specifications. Shut off and depressurize the system fully before opening or installing the housing. Confirm that inlet and outlet flow direction matches the housing orientation before final connection. Use appropriate thread sealant on all NPT connections and verify there are no leaks before returning the system to service.
