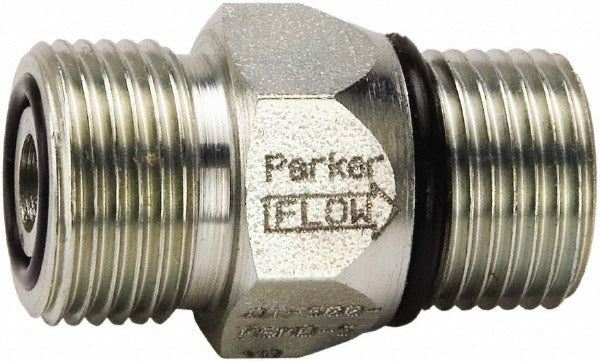

Parker DT-750-MSMO-5 Hydraulic Check Valve 30 Gpm 5000 Psi

Product Description

The PARKER DT-750-MSMO-5 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic circuits. Built from steel with metal seals, it handles a maximum working pressure of 5000 psi and a maximum flow rate of 30 GPM. The inlet thread is 1-3/16-12 with a Male Seal-Lok x Male ORB thread standard. Compact in form, the valve measures 1.91 inches in overall length, 1.25 inches in overall width, and 1.25 inches in overall height, making it suitable for tight hydraulic manifold and inline installations. Hydraulic system technicians and fluid power specialists install this valve in mobile and industrial hydraulic systems.

This check valve is appropriate for use in mobile equipment, industrial machinery, and hydraulic power unit circuits where controlled unidirectional flow is required. Its high-pressure rating of 5000 psi makes it compatible with demanding hydraulic applications in construction, agricultural, and manufacturing equipment. The Male Seal-Lok x Male ORB thread configuration allows direct connection to standard hydraulic porting without additional adapters in many common installations.

Key Features

• Maximum working pressure of 5000 psi for high-demand hydraulic circuits
• Maximum flow rate of 30 GPM for medium-to-high flow applications
• 1-3/16-12 inlet with Male Seal-Lok x Male ORB thread standard
• Steel body construction for durability in industrial and mobile environments
• Metal seal material for reliable sealing under high pressure
• Compact footprint: 1.91 inches length, 1.25 inches width, 1.25 inches height

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic circuits using 1-3/16-12 Male Seal-Lok x Male ORB porting at up to 5000 psi and 30 GPM.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic systems mechanic. Depressurize and isolate the hydraulic circuit completely before removing or installing any hydraulic valve. Verify thread engagement and torque fittings according to the system manufacturer specifications and applicable fluid power standards. Inspect all sealing surfaces for contamination or damage before assembly.
