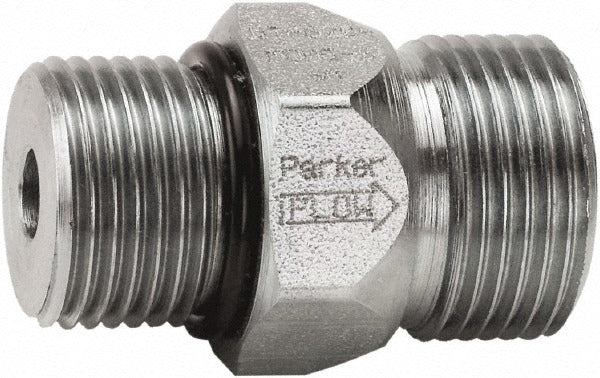

Parker DT-750-MOMS-50 Hydraulic Check Valve 30 Gpm

Product Description

The PARKER DT-750-MOMS-50 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic circuits. Built with a steel body and metal seals, this valve handles up to 30 GPM flow rate and a maximum working pressure of 5,000 psi. The inlet is threaded 1-1/16-12 with a Male ORB x Male Seal-Lok thread standard, making it a compact, high-pressure fitting suitable for demanding hydraulic system installations. Licensed hydraulic technicians and industrial mechanics typically install this valve in mobile equipment, industrial machinery, and fluid power systems where backflow prevention and circuit integrity are critical.

This check valve is suited for use in hydraulic systems requiring reliable one-way flow control at high operating pressures. Its compact overall dimensions of 1.91 inches in length, 1.25 inches in width, and 1.25 inches in height make it practical for installations where space is limited. The Male ORB x Male Seal-Lok thread configuration is commonly found in mobile hydraulic circuits, construction equipment, and industrial fluid power assemblies requiring leak-resistant fittings.

Key Features

• Maximum flow rate of 30 GPM for high-demand hydraulic circuits
• Rated to 5,000 psi maximum working pressure
• 1-1/16-12 inlet with Male ORB x Male Seal-Lok thread standard for leak-resistant connections
• Steel body construction for durability in high-pressure environments
• Metal seal material compatible with standard hydraulic fluids
• Compact footprint at 1.91 x 1.25 x 1.25 inches overall

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic systems using 1-1/16-12 Male ORB x Male Seal-Lok threaded connections rated to 5,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Before servicing, fully depressurize and de-energize the hydraulic system to zero pressure. Verify thread compatibility and use appropriate hydraulic fittings to avoid cross-threading or seal damage. Follow all applicable fluid power safety standards and equipment manufacturer service procedures during installation.
