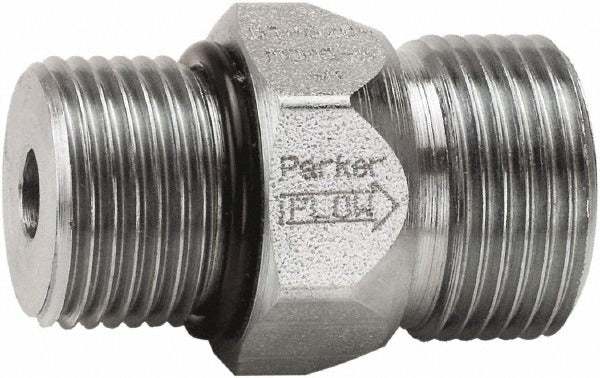

Parker DT-750-MOMS-20 Hydraulic Check Valve 30 Gpm

Product Description

The PARKER DT-750-MOMS-20 is a hydraulic control check valve designed to allow flow in one direction while preventing reverse flow in hydraulic circuits. Built from steel with metal seals, it handles up to 30 GPM and a maximum working pressure of 5,000 psi. The valve measures 1.91 inches in overall length, 1.25 inches in overall width, and 1.25 inches in overall height, making it a compact inline component. The 1-1/16-12 inlet uses a Male ORB x Male Seal-Lok thread configuration. Installation is performed by licensed hydraulic technicians and qualified fluid power specialists working on industrial and mobile hydraulic systems.

This check valve is suited for use in mobile equipment, industrial machinery, and hydraulic power units where controlled, single-direction flow is required. It is appropriate for high-pressure circuits operating at or below 5,000 psi. The compact body dimensions allow fitment in tight manifold assemblies or inline plumbing configurations. Its steel construction and metal seals make it a reliable choice for demanding hydraulic environments where elastomeric seals may be inadequate.

Key Features

• Maximum flow rate of 30 GPM for high-demand hydraulic circuits
• Rated to 5,000 psi maximum working pressure
• Steel body construction for durability in industrial and mobile applications
• Metal seal material suited for elevated-pressure and high-cycle environments
• 1-1/16-12 Male ORB x Male Seal-Lok thread for leak-resistant port connections
• Compact envelope: 1.91 inches length, 1.25 inches width, 1.25 inches height

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic systems requiring a 1-1/16-12 Male ORB x Male Seal-Lok inline check valve rated to 30 GPM and 5,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and de-energize the hydraulic system completely before removing or installing any valve components. Verify thread compatibility and torque fittings according to the equipment manufacturer specifications and applicable fluid power standards. Inspect sealing surfaces and port threads for damage before installation to prevent leaks under pressure.
