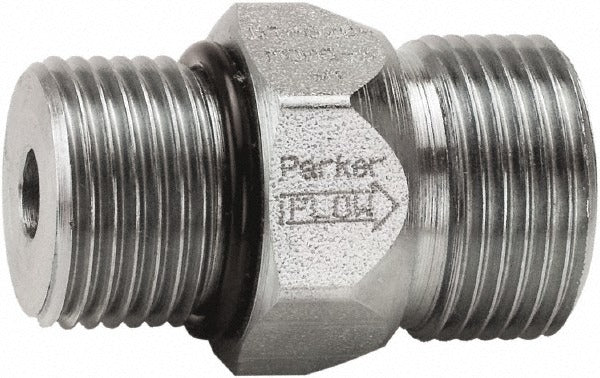

Parker DT-750-MOMS-1 Hydraulic Check Valve 30 Gpm

Product Description

The PARKER DT-750-MOMS-1 is a hydraulic control check valve designed to allow flow in one direction while preventing reverse flow in hydraulic circuit applications. Built from steel with metal seals, it is rated for a maximum working pressure of 5000 psi and a maximum flow rate of 30 GPM. The compact body measures 1.91 inches in length, 1.25 inches in width, and 1.25 inches in height, making it well-suited for installations where space is limited. It connects via a 1-1/16-12 Male ORB x Male Seal-Lok thread configuration. This valve is typically installed by hydraulic system technicians and industrial maintenance professionals working on mobile or stationary hydraulic equipment.

The DT-750-MOMS-1 is used in hydraulic circuits requiring reliable check valve function at high pressures. Typical applications include industrial machinery, mobile equipment, and hydraulic power units where preventing backflow is critical to system integrity and component protection. The 1-1/16-12 inlet size accommodates medium-capacity hydraulic lines commonly found in these systems. Its steel construction and metal seal material make it appropriate for use in demanding environments where elastomeric seals may degrade.

Key Features

• Maximum working pressure of 5000 psi for high-pressure hydraulic circuits
• Maximum flow rate of 30 GPM to support medium-capacity hydraulic lines
• 1-1/16-12 Male ORB x Male Seal-Lok thread connection for leak-resistant sealing
• Steel body construction for durability in industrial and mobile equipment environments
• Metal seal material suited for high-pressure and high-temperature applications
• Compact dimensions of 1.91 x 1.25 x 1.25 inches for space-constrained installations

Compatibility

Designed as an OEM-style replacement or retrofit check valve for hydraulic systems utilizing 1-1/16-12 Male ORB x Male Seal-Lok port connections rated at up to 5000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician familiar with high-pressure hydraulic system service. Depressurize and isolate the hydraulic circuit fully before removing or installing any valve component. Verify that thread type and port size match the existing circuit before installation, and torque fittings per the system or fitting manufacturer guidelines. Inspect the sealing surfaces for damage prior to assembly to ensure a leak-free connection.
