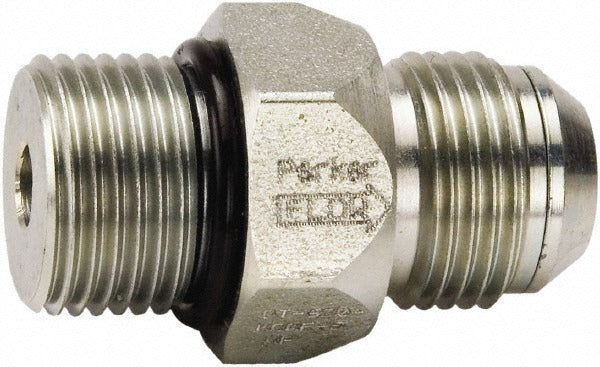

Parker DT-750-MOMF-85 Hydraulic Check Valve 30 Gpm

Product Description

The PARKER DT-750-MOMF-85 is a hydraulic control check valve designed to allow flow in one direction while preventing reverse flow in hydraulic circuits. Built with a steel body and metal seals, it handles maximum working pressures up to 5,000 psi and flow rates up to 30 GPM. The inlet is a 1-1/16-12 Male ORB (O-Ring Boss) connection, with a Male JIC outlet, making it suited for high-pressure hydraulic lines where secure, leak-resistant fittings are required. Licensed hydraulic technicians and industrial maintenance professionals are the primary installers of this component.

This valve is used in industrial and mobile hydraulic systems where controlled unidirectional flow is needed. Typical applications include hydraulic power units, mobile equipment, and machine tool circuits operating at elevated pressures. The Male ORB x Male JIC thread configuration suits installations where adapting between ORB-ported manifolds and JIC line connections is necessary. At 0.383 pounds and a compact 2.09 inches in overall length, it fits in tight plumbing arrangements without adding significant weight or bulk to the assembly.

Key Features

• Maximum working pressure of 5,000 psi for high-pressure hydraulic circuit use
• Maximum flow rate of 30 GPM to match common industrial and mobile hydraulic demands
• 1-1/16-12 Male ORB x Male JIC thread standard for reliable, leak-resistant connections
• Steel body construction for durability in demanding hydraulic environments
• Metal seal material rated for high-pressure service without elastomer degradation concerns
• Compact footprint at 2.09 inches length and 1.25 inches width and height

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic systems requiring a 1-1/16-12 Male ORB x Male JIC check valve rated to 5,000 psi and 30 GPM.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system completely before removing or installing any valve. Verify thread compatibility and torque fittings to the hydraulic system manufacturer's specifications for ORB and JIC connections. Inspect sealing surfaces prior to installation to prevent leaks under operating pressure.
