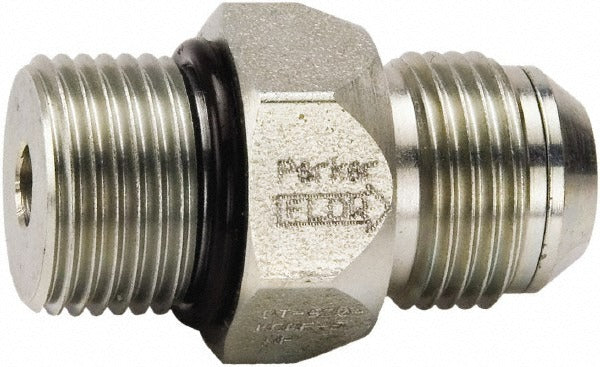

Parker DT-750-MOMF-65 Hydraulic Check Valve 30 Gpm

Product Description

The PARKER DT-750-MOMF-65 is a hydraulic control check valve designed to allow flow in one direction while preventing reverse flow in hydraulic circuits. Built with a steel body and metal seals, it handles demanding industrial and mobile hydraulic applications. The valve accepts a 1-1/16-12 inlet with Male ORB x Male JIC thread connections, supports a maximum working pressure of 5,000 psi, and flows up to 30 GPM. Its compact envelope measures 2.09 inches in length, 1.25 inches in width, and 1.25 inches in height, making it suitable for installations with limited space. Licensed hydraulic technicians and fluid power specialists are the typical installers for this component.

This check valve is suited for use in medium- to high-pressure hydraulic systems found in industrial machinery, construction equipment, agricultural equipment, and mobile hydraulic circuits. The Male ORB x Male JIC thread configuration simplifies integration into existing plumbing where both O-ring Boss and JIC fittings are present. At a rated 30 GPM flow capacity and 5,000 psi maximum working pressure, this valve handles the demands of most standard hydraulic power units and mobile equipment circuits where backflow prevention is critical to system integrity and actuator holding performance.

Key Features

• 5,000 psi maximum working pressure for use in high-pressure hydraulic circuits
• 30 GPM maximum flow rate handles demanding system requirements
• 1-1/16-12 inlet with Male ORB x Male JIC thread standard for broad plumbing compatibility
• Steel body construction for durability in industrial and mobile applications
• Metal seal design for positive shutoff in high-pressure environments
• Compact form factor at 2.09 x 1.25 x 1.25 inches for space-constrained installations

Compatibility

Designed as an OEM-style replacement or service component for hydraulic systems requiring a 1-1/16-12 Male ORB x Male JIC check valve rated to 5,000 psi and 30 GPM.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and fully discharge the hydraulic system before removing or installing any valve components. Confirm thread type and torque fittings to the specifications required by the mating hardware and system design documentation. Follow applicable fluid power safety standards and equipment manufacturer guidelines during service.
