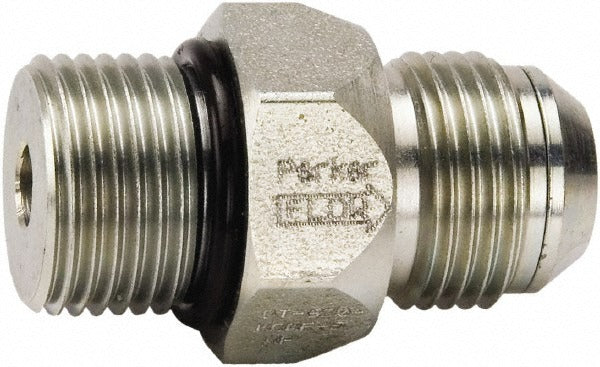

Parker DT-750-MOMF-5 Hydraulic Check Valve 30 Gpm

Product Description

The PARKER DT-750-MOMF-5 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic circuit applications. It features a 1-1/16-12 inlet with a Male ORB x Male JIC thread configuration and is rated for a maximum working pressure of 5000 psi with a maximum flow rate of 30 GPM. The valve body is steel construction with metal seals, making it well suited for demanding hydraulic system environments. At 2.09 inches in overall length and 1.25 inches in both width and height, it is a compact inline component. Licensed hydraulic technicians and industrial maintenance professionals are the typical installers.

This check valve is intended for use in mobile and industrial hydraulic systems where directional flow control and backflow prevention are required. Common applications include hydraulic power units, cylinder circuits, and fluid power assemblies where maintaining circuit integrity under high-pressure conditions is critical. The Male ORB x Male JIC thread standard allows direct inline installation in standard hydraulic plumbing without additional adapters in many configurations.

Key Features

• Rated to 5000 psi maximum working pressure for high-pressure hydraulic circuits
• 30 GPM maximum flow rate supports demanding system throughput requirements
• 1-1/16-12 inlet with Male ORB x Male JIC thread standard for common hydraulic plumbing compatibility
• Steel body construction for durability in industrial and mobile hydraulic environments
• Metal seal material provides robust sealing under high-pressure and high-cycle conditions
• Compact form factor at 2.09 inches OAL for space-constrained installations

Compatibility

Designed as an OEM-style replacement or service component for hydraulic systems utilizing 1-1/16-12 Male ORB x Male JIC inline check valve connections rated to 5000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and lock out the hydraulic system fully before removing any existing valve or fitting. Verify thread engagement and torque connections per the system manufacturer specifications and applicable fluid power standards. Inspect all sealing surfaces before installation to ensure no damage that could result in leakage under pressure.
