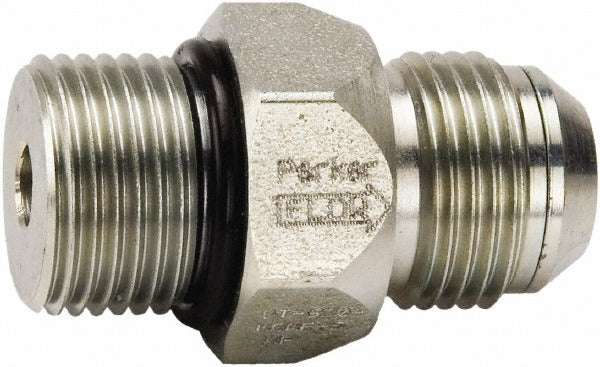

Parker DT-750-MOMF-1 Hydraulic Check Valve 30 Gpm

Product Description

The PARKER DT-750-MOMF-1 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic circuits. Built with a steel body and metal seals, this valve handles flow rates up to 30 GPM and working pressures up to 5,000 psi. The inlet uses a 1-1/16-12 thread in a Male ORB x Male JIC configuration, making it compatible with standard hydraulic line fittings. It is installed by hydraulic system technicians and maintenance mechanics working on mobile or industrial hydraulic equipment where directional flow control and system integrity are critical.

This check valve is suited for use in industrial and mobile hydraulic systems where preventing reverse flow is essential to protect pumps, actuators, and other circuit components. The compact dimensions of 2.09 inches overall length, 1.25 inches overall width, and 1.25 inches overall height allow installation in tight plumbing runs. Applications include hydraulic power units, cylinder circuits, and manifold assemblies where backflow protection is required.

Key Features

• Maximum flow rate of 30 GPM for medium-duty hydraulic circuits
• Rated to 5,000 psi maximum working pressure
• Steel body construction for durability under high-pressure conditions
• Metal seal for reliable sealing in demanding hydraulic environments
• Male ORB x Male JIC thread configuration for compatibility with common hydraulic fittings
• Compact form factor: 2.09 inches long, 1.25 inches wide, 1.25 inches high

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic systems using 1-1/16-12 Male ORB x Male JIC port connections rated for up to 5,000 psi operating pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and fully isolate the hydraulic circuit before removing or installing any valve. Verify inlet and outlet port orientation before threading to avoid reverse installation. Torque fittings in accordance with the equipment manufacturer specifications and applicable hydraulic plumbing standards.
