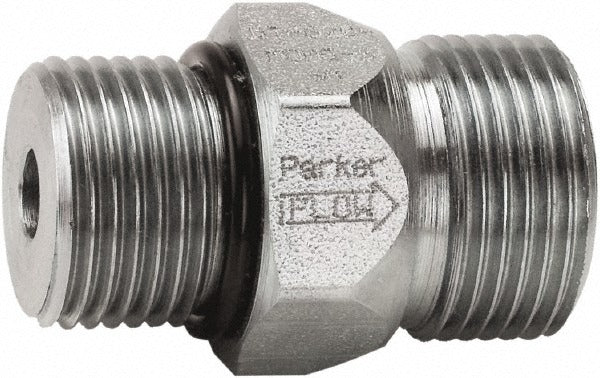

Parker DT-500-MOMS-65 Hydraulic Check Valve 15 Gpm

Product Description

The PARKER DT-500-MOMS-65 is a hydraulic control check valve engineered for high-pressure fluid power systems. It controls flow direction, preventing backflow in hydraulic circuits operating at pressures up to 5,000 psi and flow rates up to 15 GPM. The body is machined from steel with metal seals, making it suitable for demanding industrial and mobile hydraulic applications. At 1.56 inches overall length and under 0.18 pounds, it is a compact inline component. Licensed hydraulic system technicians and fluid power specialists are the typical installers for this type of valve.

This check valve is suited for use in industrial machinery, mobile equipment, and hydraulic power unit assemblies where reverse flow protection is required. The 3/4-16 inlet thread with Male ORB to Male Seal-Lok connections makes it compatible with standard hydraulic plumbing configurations found in both stationary and mobile platforms. Its compact envelope allows installation in tight manifold or inline arrangements where space is limited.

Key Features

• Maximum working pressure of 5,000 psi for high-pressure hydraulic circuits
• Maximum flow rate of 15 GPM to match common mobile and industrial system demands
• 3/4-16 inlet thread with Male ORB x Male Seal-Lok thread standard for leak-resistant connections
• Steel body construction for durability in high-cycle hydraulic environments
• Metal seal material for compatibility with a range of hydraulic fluids
• Compact form factor: 1.56 inches length, 0.88 inches width, 0.88 inches height

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic systems using 3/4-16 Male ORB to Male Seal-Lok inline check valve connections rated to 5,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any valve component. Verify thread compatibility and torque fittings according to the system manufacturer's specifications using calibrated torque tools. Inspect sealing surfaces for damage before assembly to ensure leak-free operation at rated pressure.
