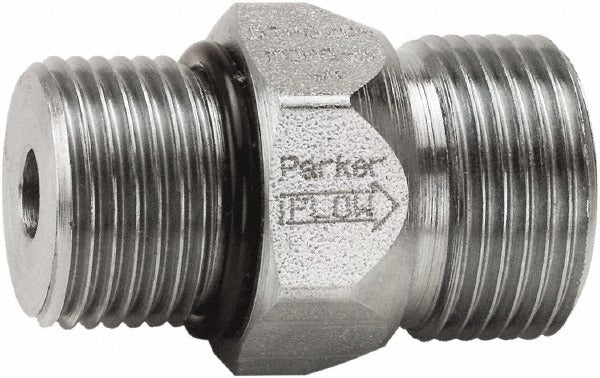

Parker DT-500-MOMS-5 Hydraulic Check Valve 15 Gpm

Product Description

The PARKER DT-500-MOMS-5 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic circuits. Built with a steel body and metal seals, this valve handles a maximum working pressure of 5000 psi and supports a maximum flow rate of 15 GPM. Its compact overall dimensions of 1.56 inches in length, 0.88 inches in width, and 0.88 inches in height make it well-suited for tight installation environments. The 3/4-16 inlet uses a Male ORB x Male Seal-Lok thread configuration, providing a reliable, leak-resistant connection. Hydraulic technicians and fluid power specialists typically handle installation and maintenance of this component.

This check valve is intended for use in mobile and industrial hydraulic systems where directional flow control and backflow prevention are required. It fits into hydraulic lines, manifolds, and power units operating within its rated pressure and flow envelope. The compact steel construction holds up to demanding cycle loads in both stationary and mobile equipment applications. Its male-to-male thread configuration makes it a practical inline fitting for connecting hydraulic lines in tight plumbing runs.

Key Features

• Maximum working pressure of 5000 psi for high-demand hydraulic circuits
• Maximum flow rate of 15 GPM for efficient fluid throughput
• 3/4-16 inlet with Male ORB x Male Seal-Lok thread standard for secure, leak-resistant connections
• Steel body construction for durability in mobile and industrial environments
• Metal seal material rated for compatibility with standard hydraulic fluids
• Compact footprint at 1.56 inches long, 0.88 inches wide, and 0.88 inches tall

Compatibility

Designed as an OEM-style inline check valve for hydraulic systems utilizing 3/4-16 Male ORB x Male Seal-Lok threaded connections operating at up to 5000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. De-energize the hydraulic system and fully relieve all line pressure before removing or installing any valve. Verify thread compatibility and confirm all fittings are torqued according to the system documentation before returning the circuit to service. Inspect for leaks on initial pressurization and follow all applicable industry safety standards for hydraulic system service.
