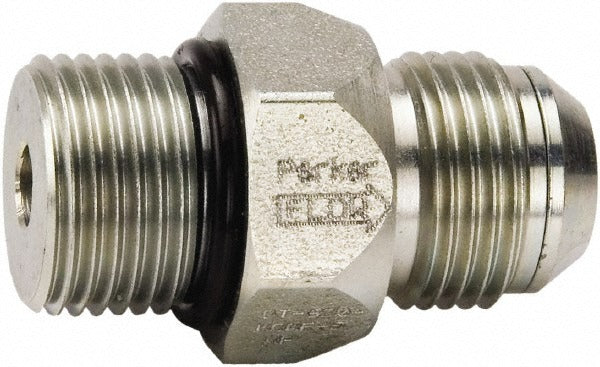

Parker DT-500-MOMF-5 Hydraulic Check Valve 15 Gpm

Product Description

The PARKER DT-500-MOMF-5 is a hydraulic control check valve designed to allow flow in one direction while preventing backflow in hydraulic systems. Built from steel with metal seals, it handles a maximum working pressure of 5000 psi and a maximum flow rate of 15 GPM. The inlet uses a 3/4-16 thread with a Male ORB x Male JIC thread standard, making it compatible with common hydraulic line fittings. At 1.71 inches in overall length, 0.88 inches wide, and 0.88 inches tall, this is a compact valve suited for tight installations. Hydraulic technicians and fluid power specialists install this valve in mobile equipment, industrial machinery, and hydraulic power units where directional flow control is required.

The DT-500-MOMF-5 is intended for use in hydraulic circuits operating at up to 5000 psi. Typical applications include mobile hydraulic systems on construction and agricultural equipment, as well as stationary industrial hydraulic power units. The Male ORB x Male JIC thread configuration suits inline installations where adapters to standard hydraulic fittings are already present. The steel body and metal seal construction make it appropriate for demanding duty cycles where rubber or elastomeric seals would degrade.

Key Features

• Maximum working pressure of 5000 psi for high-pressure hydraulic circuit use
• Maximum flow rate of 15 GPM for moderate-flow hydraulic applications
• 3/4-16 inlet with Male ORB x Male JIC thread standard for direct inline installation
• Steel body construction for durability in high-pressure environments
• Metal seal material suited for high-temperature or chemically aggressive hydraulic fluids
• Compact form factor at 1.71 x 0.88 x 0.88 inches for space-constrained installations

Compatibility

Designed as an OEM-style replacement or new-installation check valve for hydraulic systems requiring a 3/4-16 Male ORB x Male JIC inline check valve rated to 5000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Before servicing any hydraulic line, depressurize the system completely and verify zero pressure using a calibrated gauge. Ensure all fittings are compatible with the Male ORB x Male JIC thread configuration before installation. Follow applicable machine OEM service procedures and relevant fluid power safety standards when routing and securing hydraulic lines.
