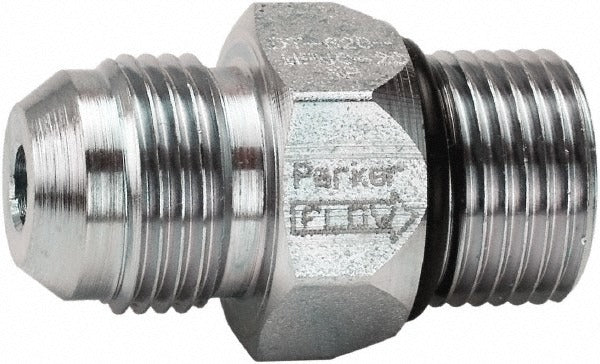

Parker DT-1250-MFMO-5 Hydraulic Check Valve 80 Gpm

Product Description

The PARKER DT-1250-MFMO-5 is a hydraulic control check valve designed to allow one-directional fluid flow while preventing backflow in hydraulic systems. It features a 1-5/8-12 inlet with Male JIC x Male ORB thread configuration, a maximum flow rate of 80 GPM, and a maximum working pressure of 2,500 psi. The body is constructed from steel with metal seals for durability in demanding hydraulic circuits. This valve is installed by hydraulic system technicians and industrial maintenance professionals in mobile and stationary hydraulic equipment.

This check valve is suited for hydraulic circuits requiring reliable backflow prevention under high-pressure conditions. With a compact envelope measuring 2.75 inches in length, 1.88 inches in width, and 1.88 inches in height, it fits into tight plumbing runs on mobile machinery, industrial presses, and other hydraulic power units. The Male JIC x Male ORB thread standard makes it compatible with common hydraulic line fittings found in typical industrial and mobile equipment installations.

Key Features

• Maximum working pressure of 2,500 psi for high-pressure hydraulic systems
• 80 GPM maximum flow rate supports demanding hydraulic circuits
• 1-5/8-12 inlet with Male JIC x Male ORB thread standard
• Steel body construction for strength and long service life
• Metal seal design for reliable performance under pressure
• Compact dimensions: 2.75 inches OAL, 1.88 inches OAW, 1.88 inches OAH

Compatibility

Designed as an OEM-style replacement or direct-fit check valve for hydraulic systems using Male JIC x Male ORB threaded connections with a 1-5/8-12 inlet port size operating at pressures up to 2,500 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and lock out the hydraulic system completely before removing or installing any hydraulic components. Verify thread compatibility and torque fittings according to the system manufacturer specifications. Inspect all adjacent lines and fittings for wear or contamination before returning the system to service.
