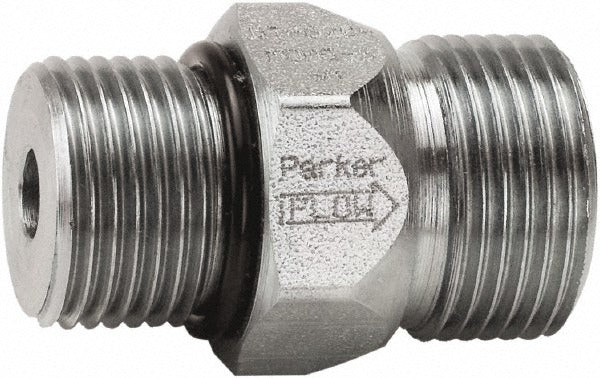

Parker DT-1000-MOMS-5 Hydraulic Check Valve 75 Gpm

Product Description

The PARKER DT-1000-MOMS-5 is a hydraulic control check valve designed to allow one-directional fluid flow while preventing backflow in hydraulic systems. Built with a steel body and metal seals, it handles a maximum working pressure of 5000 psi and a maximum flow rate of 75 GPM. The compact form factor measures 2.05 inches in length, 1.5 inches in width, and 1.5 inches in height, making it suitable for installations where space is limited. It connects via a Male ORB x Male Seal-Lok thread configuration on a 1-5/16-12 inlet, and is installed by hydraulic technicians and fluid power specialists on mobile and industrial equipment.

This check valve is used in hydraulic circuits requiring reliable backflow prevention under high-pressure conditions. Typical applications include mobile hydraulic systems on construction, agricultural, and industrial equipment, as well as stationary hydraulic power units. The Male ORB x Male Seal-Lok thread standard makes it compatible with common hydraulic manifold and hose assemblies found in these environments. Hydraulic system builders and service technicians select this valve when maintaining circuit integrity under dynamic load conditions at pressures up to 5000 psi.

Key Features

• Maximum working pressure of 5000 psi for demanding hydraulic applications
• 75 GPM maximum flow rate supports high-volume hydraulic circuits
• Steel body construction provides durability in harsh operating environments
• Metal seal material rated for high-pressure hydraulic fluid containment
• Male ORB x Male Seal-Lok thread standard for leak-resistant connections
• Compact dimensions of 2.05 x 1.5 x 1.5 inches for space-constrained installations

Compatibility

Designed as an OEM-style replacement or direct-fit check valve for hydraulic circuits using 1-5/16-12 Male ORB x Male Seal-Lok threaded connections rated to 5000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit fully before removing or installing any valve. Use the correct torque for the thread standard and fitting material per the equipment manufacturer specifications — do not over-torque metal seal fittings. Verify flow direction before finalizing installation, as check valves are directional components.
