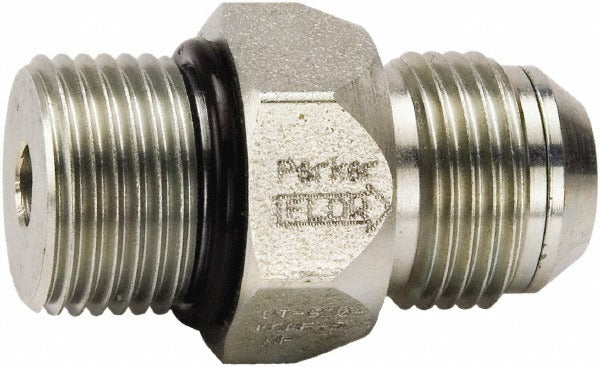

Parker DT-1000-MOMF-5 Hydraulic Check Valve 75 Gpm

Product Description

The PARKER DT-1000-MOMF-5 is a hydraulic control check valve designed to allow flow in one direction and block reverse flow in hydraulic circuits. Built from steel with metal seals, it handles a maximum working pressure of 5000 psi and a maximum flow rate of 75 GPM. The valve features a 1-5/16-12 inlet with Male ORB x Male JIC threading, making it well suited for high-pressure hydraulic lines in industrial and mobile equipment applications. Licensed hydraulic technicians and millwrights install this type of valve when directional flow control and pressure retention are required in a circuit.

This check valve is applicable in hydraulic systems found in industrial machinery, mobile hydraulic equipment, construction equipment, and agricultural machinery. It is installed inline where preventing backflow is critical to circuit performance and equipment protection. The compact form factor — 2.26 inches overall length, 1.5 inches overall width, and 1.5 inches overall height — makes it practical in tight hydraulic manifold and line installations where space is limited.

Key Features

• Maximum working pressure of 5000 psi for high-demand hydraulic circuits
• Maximum flow rate of 75 GPM to support high-volume hydraulic lines
• 1-5/16-12 inlet with Male ORB x Male JIC thread standard for secure, leak-resistant connections
• Steel body construction for durability in industrial and mobile hydraulic environments
• Metal seal material for reliable sealing at elevated pressures
• Compact dimensions: 2.26 inches OAL, 1.5 inches OAW, 1.5 inches OAH

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic systems requiring a 1-5/16-12 Male ORB x Male JIC inline check valve rated to 5000 psi and 75 GPM.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic familiar with high-pressure hydraulic systems. Depressurize and de-energize the hydraulic system completely before removing any existing valves or fittings. Ensure thread compatibility and apply appropriate thread sealant or O-ring per the Male ORB fitting specification before installation. Inspect surrounding lines and fittings for wear or damage during service.
