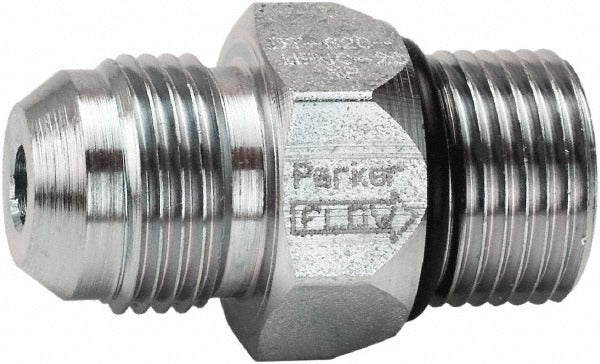

Parker DT-1000-MFMO-65 Hydraulic Check Valve 75 Gpm

Product Description

The PARKER DT-1000-MFMO-65 is a hydraulic control check valve designed to allow flow in one direction while preventing reverse flow in hydraulic circuits. It features a 1-5/16-12 inlet with Male JIC x Male ORB thread configuration, a maximum working pressure of 3,000 psi, and a maximum flow rate of 75 GPM. The steel body and metal seal construction make it suitable for demanding hydraulic system environments. This valve is installed by hydraulic system technicians and industrial maintenance professionals working on mobile or stationary hydraulic equipment.

The DT-1000-MFMO-65 is suited for use in industrial and mobile hydraulic systems where directional flow control is required. Its compact envelope — 2.26 inches in length, 1.5 inches in width, and 1.5 inches in height — makes it practical for installations with limited clearance. The Male JIC x Male ORB thread standard is common in hydraulic plumbing used across agricultural, construction, and material-handling equipment platforms.

Key Features

• Check valve function prevents reverse flow in hydraulic circuits
• Maximum working pressure of 3,000 psi
• Maximum flow rate of 75 GPM
• 1-5/16-12 inlet size with Male JIC x Male ORB thread standard
• Steel body with metal seal for durability in high-pressure applications
• Compact dimensions: 2.26 inches OAL x 1.5 inches OAW x 1.5 inches OAH

Compatibility

Designed as an OEM-style replacement or direct-fit component for hydraulic systems requiring a 1-5/16-12 Male JIC x Male ORB check valve rated to 3,000 psi and 75 GPM.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system fully before removing or installing any valve. Verify that thread type and inlet size match the existing plumbing before installation. Torque fittings per the hydraulic system manufacturer's specifications and inspect for leaks upon system restart.
