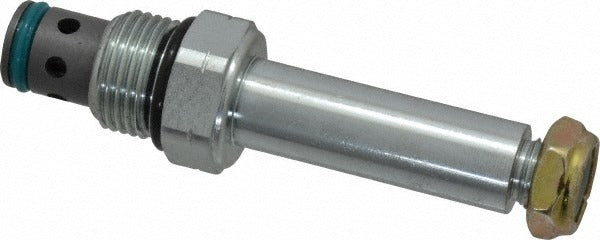

Parker DSL101N Hydraulic Solenoid Valve 15 Gpm 3600 Psi

Product Description

The PARKER DSL101N is a two-way hydraulic control solenoid valve designed for high-pressure fluid power circuits. It threads directly into a C10-2 cavity using a 7/8-14 UNF thread, making it a cartridge-style valve suited for manifold or inline block installations. Rated to 3,600 psi maximum working pressure and 15 GPM maximum flow rate, the DSL101N handles demanding hydraulic applications with a steel body construction. Licensed hydraulic system technicians and fluid power specialists are the primary installers for this valve in both mobile and stationary hydraulic equipment.

The DSL101N fits hydraulic systems requiring two-way, solenoid-actuated flow control at high pressure. Typical applications include industrial machinery, mobile equipment hydraulics, and hydraulic power units where electrically controlled on/off flow switching is required. The C10-2 cavity standard allows integration into pre-ported manifold blocks, simplifying plumbing and reducing potential leak points in the circuit. This valve is appropriate for both new system builds and replacement installations in existing manifold assemblies.

Key Features

• Two-way solenoid actuation for electrically controlled on/off flow switching
• Rated to 3,600 psi maximum working pressure for high-pressure hydraulic circuits
• 15 GPM maximum flow rate supports demanding fluid power applications
• 7/8-14 UNF cartridge thread fits standard C10-2 cavity manifolds
• Steel body construction for durability in industrial and mobile equipment environments

Compatibility

Designed as an OEM-style cartridge solenoid valve for hydraulic systems using the C10-2 cavity standard with 7/8-14 UNF thread porting.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and de-energize the entire hydraulic circuit before removing or installing any cartridge valve. Use appropriate cartridge valve installation tooling to achieve proper seating in the C10-2 cavity without damaging valve seals. Follow the equipment manufacturer's specifications for cavity preparation and cleanliness before installation.
