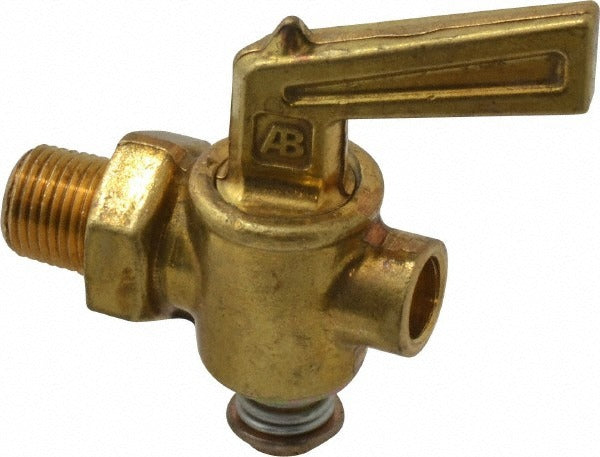

Parker DC601-2 Brass Drain Cock Valve 1/8 Inch Nptf

Product Description

The PARKER DC601-2 is a brass male pipe drain cock shutoff valve designed for fluid isolation and controlled drainage in low-pressure piping systems. It features a 1/8-27 NPTF threaded male connection and a maximum working pressure of 150 psi. The brass body provides corrosion resistance in both air and liquid service applications. This valve is installed by licensed plumbers and HVAC technicians wherever a compact, reliable shutoff or bleed point is needed on a small-diameter line. Its lightweight construction — 0.1475 pounds — makes it practical in tight spaces and equipment enclosures.

The DC601-2 is suited for residential and light commercial plumbing, HVAC equipment drain lines, compressed air systems, and hydronic heating circuits. The 1/8-27 NPTF thread size targets small-bore connections common on boilers, air compressors, water heaters, and refrigeration equipment where a manual drain or isolation point is required. Minimum working temperature is 32 degrees F, making this valve appropriate for indoor heated installations. It ships as an individual unit with a package quantity of one.

Key Features

• Brass body construction for corrosion resistance in air and liquid service
• 1/8-27 NPTF male threaded connection for a pressure-tight seal
• 150 psi maximum working pressure
• Compact and lightweight at 0.1475 pounds — suited for tight enclosures
• Manual shutoff and drain functionality in a single fitting

Compatibility

Designed as an OEM-style replacement or new-installation drain cock for small-bore piping systems using 1/8-27 NPTF male threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable IPC and local plumbing codes. Depressurize and isolate the system before installing or replacing this valve. Apply thread sealant or PTFE tape to the male threads per standard practice to ensure a leak-free seal. Do not exceed the 150 psi rated working pressure.
