Parker DAE-5L R717 Ammonia Expansion Valve 5 Ton

Product Description

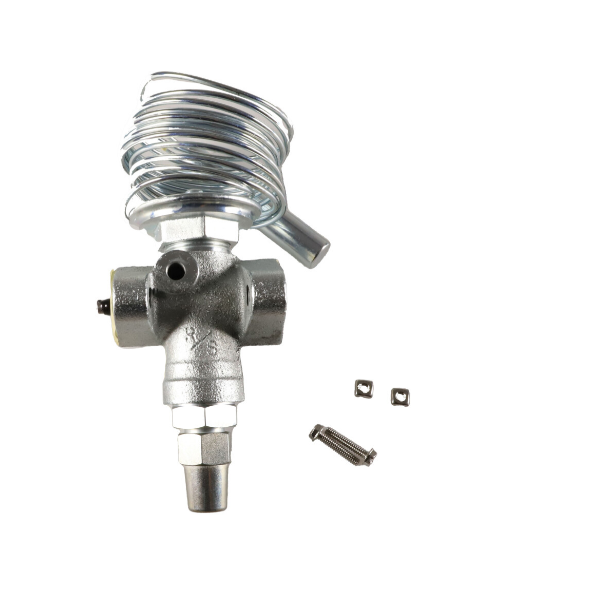

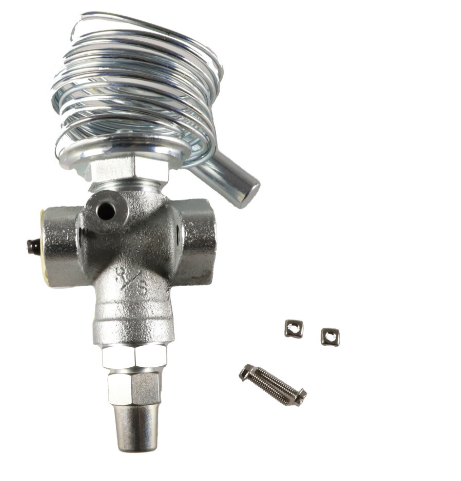

The Parker DAE-5L is an ammonia expansion valve suitable for R717 refrigeration systems. It features an externally adjustable design and comes with a gray cast bronze body. This valve is built with FPT flange connections and has a replaceable thermostatic element for ongoing reliability.

• Gray cast bronze body with FPT flange connections
• Externally adjustable with a replaceable thermostatic element
• Designed specifically for R717 ammonia refrigeration systems

Product Highlights

This valve is essential for efficient operation in commercial and industrial refrigeration. It can handle a nominal capacity of five tons and features a half-inch connection.

Product Information

Standard Information

• Brand: Parker Refrigeration Specialties
• Manufacturer Name: Parker Refrigeration Specialties

Technical Specifications

• Vendor Name: Sporlan
• URI Part Number: DAE5L
• Vendor Part Number: 107949
• Available Thermostatic Charge: Liquid
• Capillary Length: 10 feet
• Connection Size Inlet: 1/2 inches
• Connection Size Outlet: 1/2 inches
• Connection Type: FPT inlet x FPT outlet flanged
• Element Size: 23 gasket joint
• Equalizer: 1/8 FPT
• Nominal Tons: 5
• Overall Height: 6.37 inches
• Refrigerant: R717 ammonia
