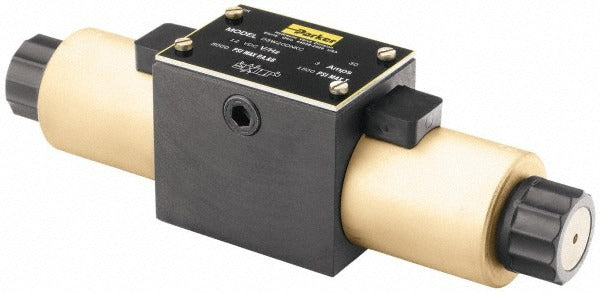

Parker D3W008CNYK5 Hydraulic Solenoid Valve 12 Gpm

Product Description

The PARKER D3W008CNYK5 is a three-way hydraulic solenoid valve designed for high-pressure fluid control in hydraulic power systems. It supports a maximum flow rate of 12 GPM and a maximum working pressure of 5000 psi, making it suited for demanding industrial and mobile hydraulic circuits. The valve operates on 120 volt AC input and features a dual-solenoid configuration for directional control. The body and seal materials are nitrile and nitrile butadiene rubber, offering solid resistance to petroleum-based hydraulic fluids. Licensed hydraulic system technicians and industrial mechanics are the typical installers of this component.

This valve is used in hydraulic circuits requiring three-way directional control, such as actuator extend-and-hold or divert applications. It is appropriate for both stationary industrial machinery and mobile equipment hydraulic systems where AC power is available at the valve manifold. Its compact envelope measures 9.85 inches in overall length, 2.76 inches in overall width, and 5.1 inches in overall height, allowing it to fit into tight manifold assemblies or subplate-mounted configurations.

Key Features

• Three-way flow regulation for directional hydraulic control
• Maximum flow rate of 12 GPM with a 5000 psi pressure rating
• Dual-solenoid design for positive two-position switching
• 120 volt AC input current for compatibility with standard industrial power
• Nitrile body and nitrile butadiene rubber seals for petroleum-fluid resistance
• Compact form factor suitable for subplate or manifold mounting

Compatibility

Designed as an OEM-style replacement or new-installation solenoid valve for hydraulic systems requiring a three-way, dual-solenoid, AC-operated directional control valve rated to 5000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic. Depressurize the hydraulic circuit and de-energize all electrical power to the valve before beginning any installation or service work. Verify that the system supply voltage matches the 120 volt AC rating of this valve before energizing. Follow applicable NFPA hydraulic standards and the equipment manufacturer service documentation for manifold port orientation and mounting torque requirements.
