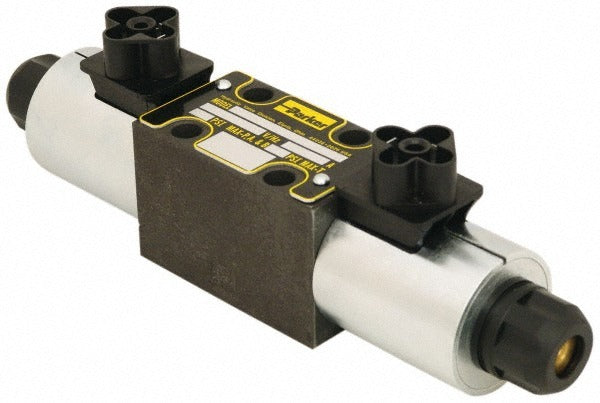

Parker D1VW008CNYG5 Hydraulic Solenoid Valve 6 Gpm 5000 Psi

Product Description

The PARKER D1VW008CNYG5 is a two-way hydraulic solenoid valve rated for flows up to 6 GPM and maximum working pressures up to 5000 psi. It uses dual AC solenoids operating at 120 volts, 60 Hz to control hydraulic fluid flow in demanding industrial and mobile hydraulic circuits. The valve body and seals are constructed from nitrile and nitrile butadiene rubber (NBR), providing reliable resistance to petroleum-based hydraulic fluids. At 3.5 pounds and compact overall dimensions, it fits standard hydraulic manifold and subplate mounting configurations used by hydraulic technicians and fluid power specialists.

This valve is suited for residential and commercial hydraulic system applications where precise two-way flow control at high pressure is required. Typical installation scenarios include industrial machinery, mobile equipment hydraulic circuits, and power unit assemblies. The dual-solenoid configuration allows for bi-directional control switching in systems that require positive shut-off or directional flow management. Hydraulic system integrators and fluid power technicians are the primary installers of this valve type.

Key Features

• Two-way hydraulic flow control rated to 6 GPM maximum flow rate
• Maximum working pressure of 5000 psi for high-pressure circuit use
• Dual AC solenoids operating at 120 volts, 60 Hz
• Nitrile body material and nitrile butadiene rubber (NBR) seal construction for petroleum fluid compatibility
• Compact form factor: 8.3 inches overall length, 1.81 inches overall width, 3.72 inches overall height
• 3.5 pound package weight suitable for standard manifold subplate mounting

Compatibility

Designed as an OEM-style replacement or direct-fit hydraulic solenoid valve for two-way, dual-solenoid hydraulic control circuits operating at up to 5000 psi and 6 GPM with 120-volt AC solenoid power.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and de-energize the hydraulic system fully before removing or installing any valve. Verify that system voltage matches the 120-volt AC solenoid rating before energizing. Follow applicable fluid power safety standards and equipment manufacturer guidelines for torque and port connections.
