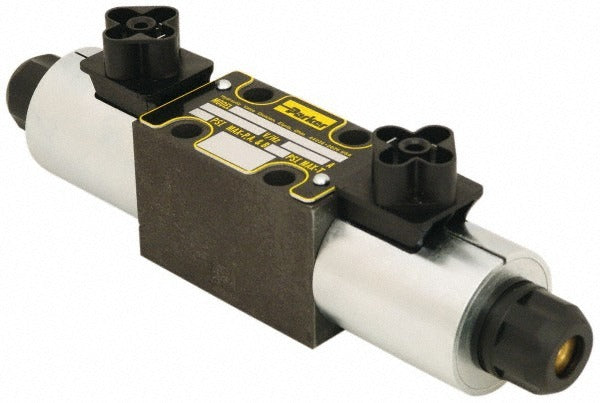

Parker D1VW004CNYG5 Hydraulic Solenoid Valve 10 Gpm

Product Description

The PARKER D1VW004CNYG5 is a dual-solenoid hydraulic control valve rated for flows up to 10 GPM and maximum working pressures up to 5000 psi. It operates on 120V AC input current, making it suitable for integration into industrial and mobile hydraulic circuits where reliable directional control is required. The valve body is constructed with Nitrile sealing material, offering compatibility with petroleum-based hydraulic fluids in demanding pressure environments. At 3.5 pounds, this is a compact, field-serviceable component installed by hydraulic system technicians and industrial maintenance professionals in power unit assemblies, press circuits, and directional control manifolds.

This valve is applied in hydraulic systems requiring electrically actuated directional control across industrial machinery, hydraulic power units, and fluid power circuits. The dual-solenoid configuration allows for positive control of cylinder or motor direction from an electrical signal. Typical installation scenarios include press controls, conveyor hydraulics, lift systems, and machine tool circuits where precise, repeatable directional switching is required at elevated system pressures.

Key Features

• Maximum flow rate of 10 GPM for mid-range hydraulic circuit applications
• Rated to 5000 psi maximum working pressure for high-pressure system use
• Dual-solenoid design provides positive bi-directional electrical control
• 120V AC input voltage for standard industrial power supply compatibility
• Nitrile seal material suited for petroleum-based hydraulic fluid service
• Compact footprint at 8.3 inches overall length for panel and manifold mounting

Compatibility

Designed as an OEM-style directional control solenoid valve for hydraulic power units and fluid power systems operating at up to 5000 psi with petroleum-compatible hydraulic fluid and 120V AC electrical supply.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and de-energize the hydraulic system completely before removing or installing any solenoid valve. Verify that supply voltage matches the valve rating before energizing. All electrical connections must comply with applicable local electrical codes, and hydraulic connections should be torqued per the fitting manufacturer specifications using appropriate tooling.
