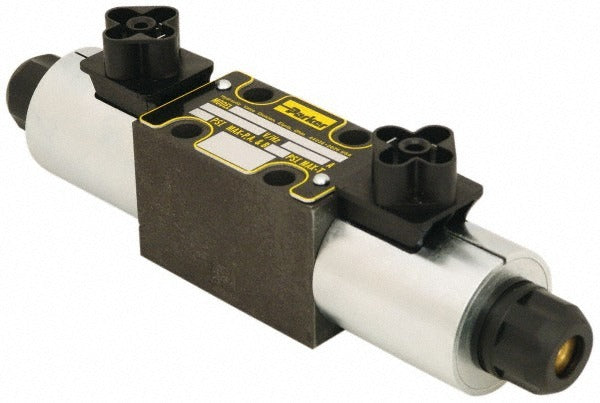

Parker D1VW004CNJW Hydraulic Solenoid Valve 10 Gpm

Product Description

The PARKER D1VW004CNJW is a two-way hydraulic solenoid valve designed for industrial and mobile hydraulic systems operating at pressures up to 5,000 psi and flow rates up to 10 GPM. The valve runs on 24-volt DC input current and uses dual solenoids to control directional flow in demanding hydraulic circuits. The body and primary seals are constructed from nitrile and nitrile butadiene rubber, providing solid resistance to petroleum-based hydraulic fluids. Licensed hydraulic technicians and industrial maintenance personnel are the primary installers for this component.

This valve is suited for use in hydraulic power units, press circuits, mobile equipment, and industrial machinery where precise two-way directional control is required. Its compact envelope — measuring 9.62 inches in length, 1.81 inches in width, and 3.06 inches in height — makes it practical for installations with limited clearance. The 5,000 psi pressure rating supports use in high-force actuator and cylinder circuits common in manufacturing and heavy equipment applications.

Key Features

• Two-way directional flow control rated to 10 GPM maximum flow rate
• 5,000 psi maximum working pressure for high-force hydraulic circuits
• 24-volt DC solenoid input with dual solenoid configuration
• Nitrile body material and nitrile butadiene rubber seals for compatibility with petroleum-based hydraulic fluids
• Compact profile at 9.62 x 1.81 x 3.06 inches for space-constrained installations

Compatibility

Designed as an OEM-style directional control valve for hydraulic systems requiring two-way solenoid operation at up to 5,000 psi and 10 GPM with a 24-volt DC control signal.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and lock out the hydraulic system completely before removing or installing this valve. Verify that system voltage matches the 24-volt DC solenoid requirement before energizing. Follow applicable fluid power standards and the equipment manufacturer's torque and porting specifications for manifold or sub-plate mounting.
